Description

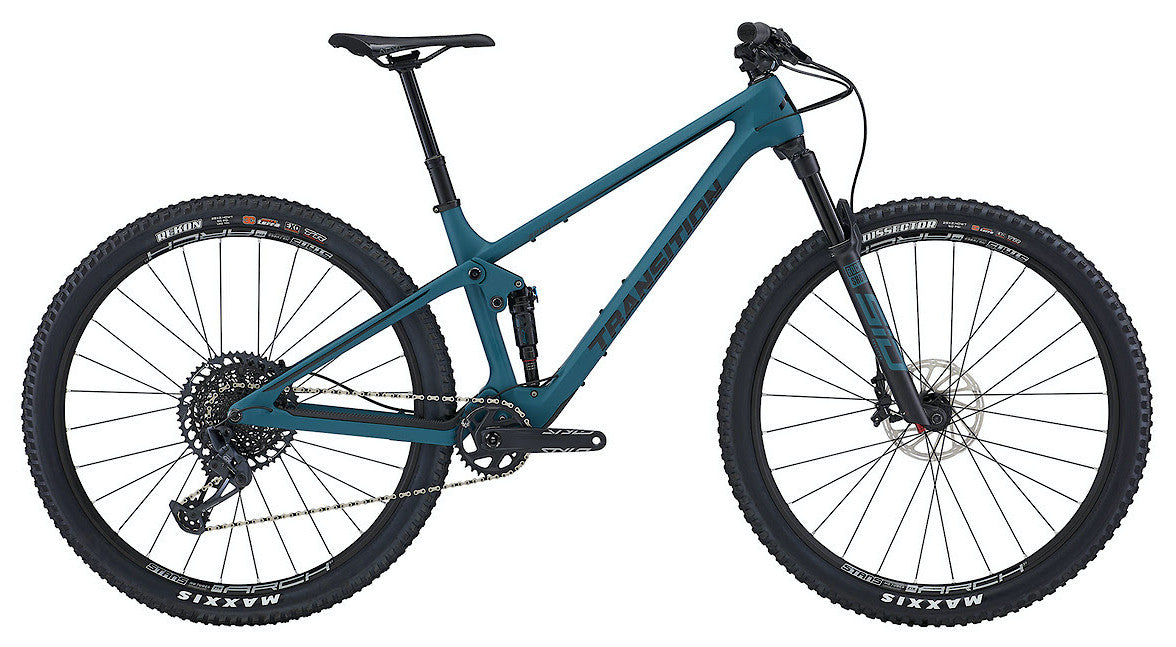

transition gravel bike Transition Spur Deore Carbon Mountain Bike 2023The All Country Bike Effortlessly explore, seek, and pursue the mountain in ways you never imagined. The Transition Spur provides a sense of connection to the bike as if it were an extension to your body. Fast and efficient with an anti gravity feel and laser pointer precision that begs you to climb more, go farther, and descend anything you may encounter along the way. You'll instantly appreciate the free speed you're awarded while accelerating where
The All-Country Bike
Effortlessly explore, seek, and pursue the mountain in ways you never imagined.
The Transition Spur provides a sense of connection to the bike as if it were an extension to your body. Fast and efficient with an anti-gravity feel and laser-pointer precision that begs you to climb more, go farther, and descend anything you may encounter along the way. You'll instantly appreciate the free speed you're awarded while accelerating where you're usually accustomed to pedaling. Don't judge a book by its cover though, with all these lightweight and uphill oriented character traits the Transition Spur requires no adjustment to descend like you're used to, you might actually go faster.
| Product | Transition Spur GX Bike |
|---|---|
| Model Year | 2023 |
| Riding Type | Trail |
| Rider | Unisex |
| Sizes and Geometry |
SM, MD, LG, XL View Geometry
|
| Wheel Size | 29" |
| Frame Material | Carbon Fiber |
| Frame Material Details | Japanese Toray carbon utilizing high-end latex-coated EPS molding Blend of 24T, 30T, and 40T material Full carbon frame (front triangle, rear triangle, and rocker) |
| Rear Travel | 120mm |
| Rear Shock | FOX FLOAT DPS Performance Elite, 190mm length x 45mm stroke |
| Fork | FOX FLOAT 34 Performance Elite, FIT4 damper, 44mm offset |
| Fork Travel | 120mm |
| Head Tube Diameter | Tapered, 1.125" top, 1.5" bottom |
| Headset | FSA No.57E, 44mm/56mm press-in, zero stack |
| Handlebar | ANVL Mandrel, alloy, 800mm width, 20mm rise |
| Stem | Race Face Aeffect R, 50mm length |
| Grips | Sensus Lite |
| Brakes | Calipers: SRAM G2 RS, 4-piston Rotors: SRAM CenterLine, 180mm front, 160mm rear |
| Brake Levers | SRAM G2 RS |
| Drivetrain | 1x |
| Shifters | SRAM GX Eagle, 12-speed |
| Front Derailleur | None |
| Rear Derailleur | SRAM GX Eagle, 12-speed |
| ISCG Tabs | 2-bolt ISCG 05 (front mounts only) |
| Chainguide | None included |
| Cranks | Truvativ Stylo 7K Eagle, 170mm length (SM), 175mm length (MD/LG/XL) |
| Chainrings | Truvativ Stylo 7K Eagle, 32 tooth |
| Bottom Bracket | SRAM, 73mm BSA threaded |
| Pedals | None included |
| Chain | SRAM GX Eagle, 12-speed |
| Cassette | SRAM GX Eagle XG-1275, 10-52 tooth, 12-speed |
| Rims | Stan's NoTubes Arch S1 wheelset, 28 hole |
| Hubs | Stan's NoTubes Arch S1 wheelset, 28 hole, 110x15mm Boost front, 148x12mm Boost rear with XD driver |
| Spokes | Stan's NoTubes Arch S1 wheelset |
| Tires | Front: Maxxis Dissector, 3C, EXO, 29" x 2.4" Rear: Maxxis Rekon, 3C, EXO, 29" x 2.4" |
| Saddle | ANVL Forge CroMo |
| Seatpost | OneUp Dropper Drop: 120mm (SM), 150mm (MD), 180mm (LG), 210mm (XL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Standard single bolt, 37.0mm |
| Rear Dropout / Hub Dimensions | 148mm x 12mm Boost |
| Max. Tire Size | 29" x 2.4" |
| Bottle Cage Mounts | 2 mounts (inside front triangle and underside of downtube) |
| Colors | Deep Sea Green, Black Powder |
| Warranty | Lifetime frame |
| Weight | 26 lb 14.3 oz (12,200 g) |
| Miscellaneous | - SBG geometry - GiddyUp suspension design - Progressive suspension kinematics - EnduroMAX sealed bearings with bearing shields on main pivot - Collet main pivot axle with bearing shield for contamination protection - Carbon tuned pivot-less flex stay rear triangle - Flush-mount custom-molded rubber chainstay and down tube protection - External rear brake cable routing - Fully guided rear derailleur cable routing in downtube and chainstay - Accessory mount on underside of top tube - Short seat tube lengths with mega seatpost insertion for accommodating long travel dropper posts - Wide 25 - 35% sag range - Compatible with 190mm x 37.5mm stroke 100mm rear shocks - Press in cup headset allows for angle adjust headsets - Weight given for size MD - 2.45-kg (5.4-lb) frame with shock - Includes tubeless valve stems and Stan's NoTubes sealant (6oz.) |
