Tom's Line Engineering

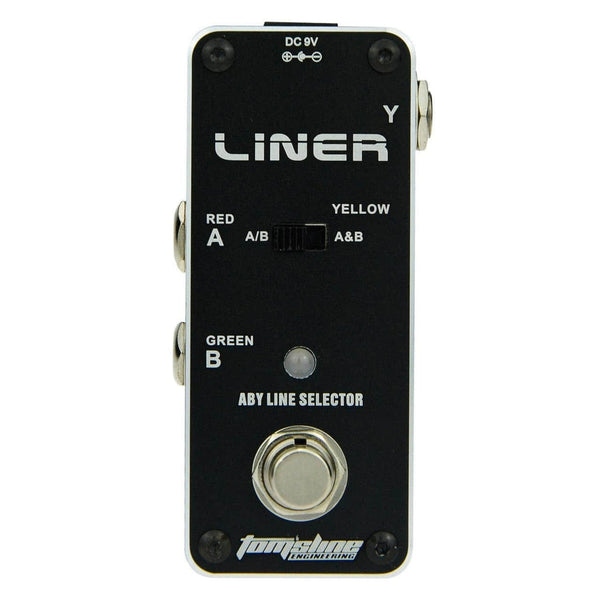

ALR-3 Liner - ABY Line Selector

these are mini effects pedals

they do not use batteries 9 Volt Power Supply only !!!

Size   94mm Long x 42mm Wide x 48mm High

ABY signal switching pedal

Signal path from Y to A (red light), from Y to B (green light), or from Y to both A and B (yellow light)

Or, signal path from A (red light) to Y, or from B (green light) to Y, or from both A and B (yellow light) to Y

True bypass

Multi ways signal path options

  Aluminum alloy case

High quality metal components

Power input: 9V

by power adapter type - tip negative (-)

Power consumption: less than 20mA

Slip resistance bottom

Compliant with RoHS regulations, FCC, CE, etc.

Enviromental friendly material used

Dimension: 92*38*32mm

Weight: 133g

Tomsline Model APW-3 Mobile Power for Mini Pedals & other 9 Volt Pedals

Power up all your effect pedals connected by a multi heads power cable.

Tom'sline APW-3 Mobile Power for Mini Pedals.

Recharging Voltage : 10V

Output Voltage : 9V

Recharging Time : < 5 hours.

Output Current : 500mA max.

Power Capacity : 1800 mAH / 7.4V

Output Ripple : 40mV (rms) / 500mA

Consumption Under Sleep Mode : < 50uA

Dimension : 92x38x31mm

Weight :
SKU    ALR-3
Barcode #    6959556902242
Brand    Tom's Line
Shipping Weight    0.2600kg
Shipping Width    0.068m
Shipping Height    0.066m
Shipping Length    0.126m
