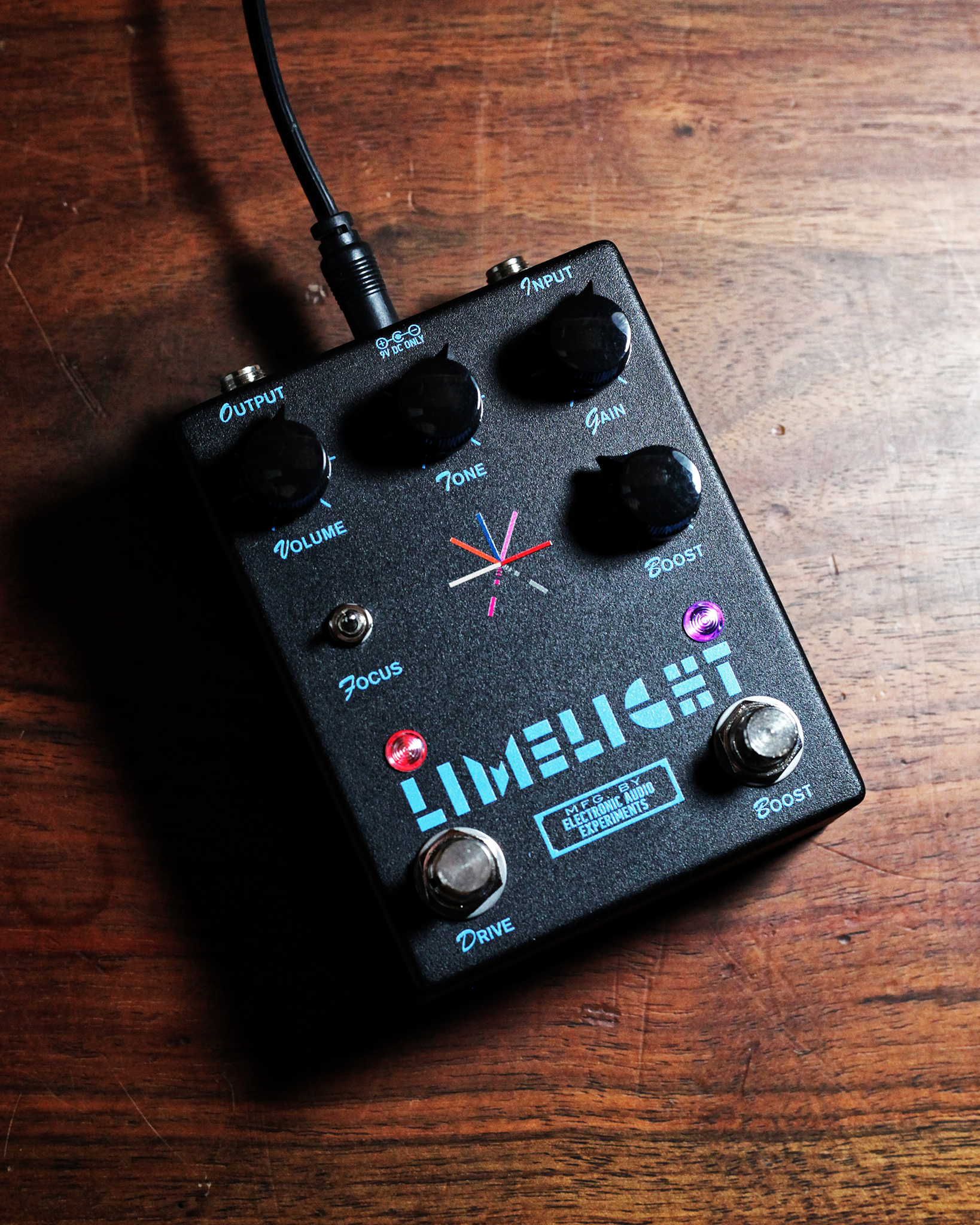

limelight pedal Electronic Audio Experiments Limelight V2 Dual Overdrive Pedal – Round Hill Music Co

Unleash Dynamic Drive & Articulate Boost

The Limelight V2 is a dual-channel overdrive and boost pedal, developed in collaboration with Touché Amore to deliver chimey, articulate drive tones with a powerful independent boost. Whether you're crafting crisp, melodic passages or pushing your amp into aggressive distortion, Limelight V2 provides exceptional clarity, dynamic response, and tonal versatility.

Featuring relay-based true bypass switching, a dual-stage gain structure, and refined tone and focus controls, this pedal lets you shape your sound with precision. The boost circuit adds up to 21dB of clean gain, perfect for pushing the drive section or enhancing clean tones. With noise reduction improvements and an updated portrait-oriented form factor, Limelight V2 is built for reliability and performance in any setup.

Key Features:

• Dual-channel design – Independent overdrive and boost circuits for flexible gain staging

• Refined tone shaping – Tone & Focus controls for sculpting treble, midrange, and bass response

• Powerful boost – Up to 21dB of clean gain with a subtle low-cut for clarity

• Relay-based true bypass – Ensures signal integrity and defaults to bypass in case of power loss

• Noise reduction improvements – Enhanced circuit design for cleaner operation

• Portrait-oriented form factor – Optimized layout for better usability

Specs:

• Bypass: Relay-based true bypass switching

• Input Impedance: 500kΩ (Boost/Drive)

• Output Impedance: 1kΩ (Boost), <5kΩ (Drive)

• Power: 9VDC, 2.1mm center-negative barrel (80mA current draw)

• Boost Gain: 0dB to +21dB

• Drive Gain: Up to 50dB

• Controls: Boost, Gain, Tone, Volume, Focus

• Footswitches: Left – Drive, Right – Boost

• Dimensions: 4.77” x 2.6” x 1.39” (Portrait-style enclosure)

• Weight: 0.75 lbs
