The Full Scoop on the Mondraker Dusk R

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The Mondraker Dusk R features Forward Geometry, Zero E-Bike Optimized, Stealth Side alloy structure.

  Equipped with the latest, lightest and strongest Shimano motor system to date, Zero Suspension System, Double battery pack compatible and a build set that leaves nothing to be desired, the Mondraker Dusk R is a beast of an eMTB!

  The famous Mondraker Forward Geometry handling was refined at the extreme edge of DH racing so it’s perfect for taming the extra speed and load of powered riding. We’ve optimized our Zero Suspension system to match and teamed our super accurate, integrated battery frame with Fox’s legendary 36 Float Evol fork for a package that delivers total control. Because you’ll want to ride this awesome package so much we’ve also added the option of more than 50% additional range with our booster battery. Add 203mm discs, an OnOff Pija dropper and Maxxis Rekon tires for a splendid blend.

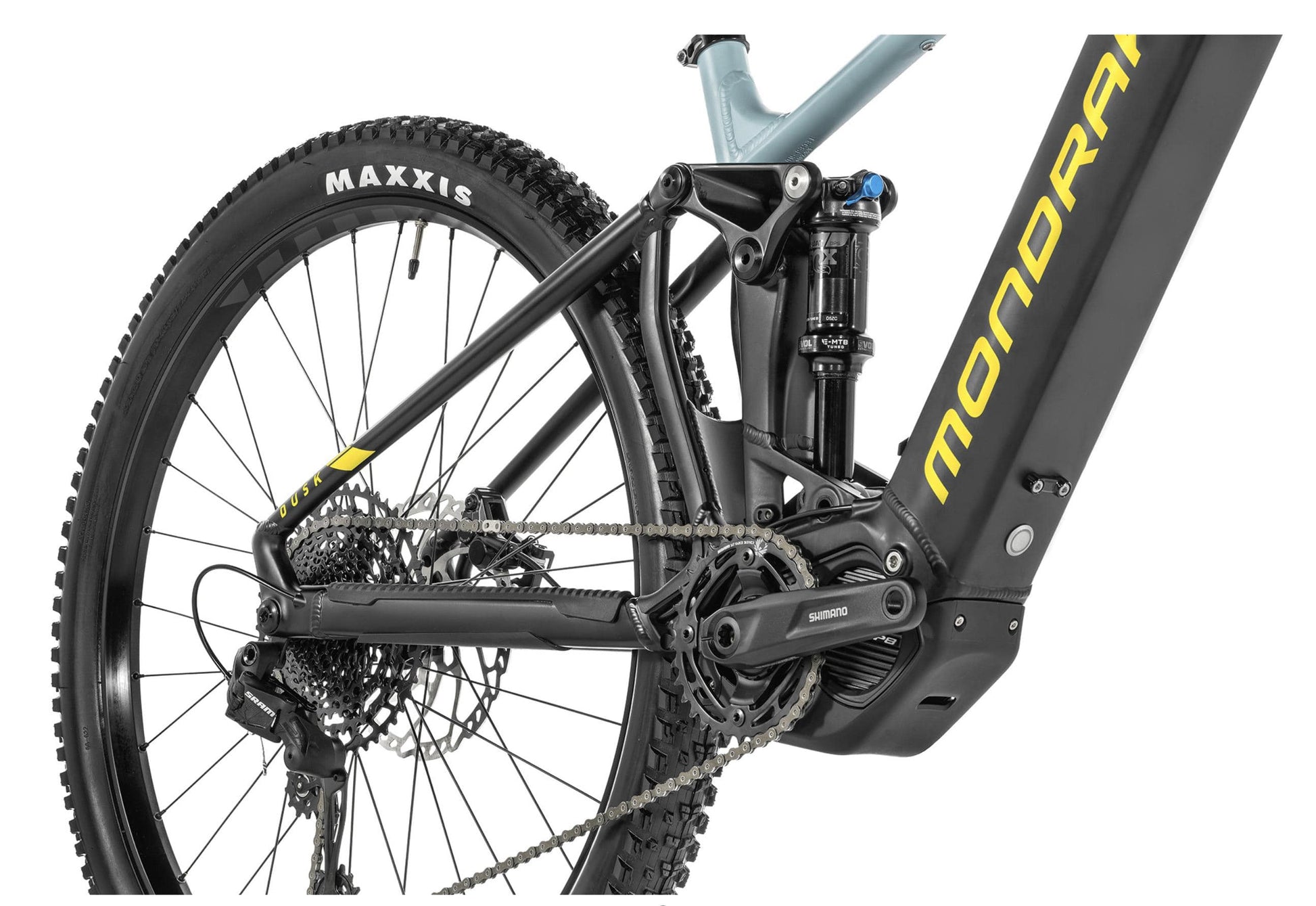

  Zero Suspension System - is a dual link design with the shock floating between the two suspension links and compressed from both ends. This makes the rear suspension extremely sensitive on small bumps and big hit capable.

  Advantages

  • Zero power loss. High pedaling efficiency. The power applied to pedals is transformed to immediate forward motion without any extra compression or extension of the rear shock.
  • Zero pedal kickback. Chain length growth throughout the suspension travel is minimum, so pedaling is as effective and efficient as possible.
  • Zero brake jack. Rear brake forces do not work against suspension forces. The rear shock works supple and freely and absorb impacts without any suspension stiffening caused for the rear brake action.
  • Zero bumps. The most remarkable feature of the system is its excellent suppleness on rough terrain and a completely stable ride when pedaling.



  Stealth Alloy - encompasses all processes in the creation of the frame, from the industrial design to the specific production of each of its tubes with the calculation of the most precise details. Each tube and part is carefully designed to carry out a specific function while striving to achieve the lowest possible weight. Stealth technology is evolving every year with optimized shapes and internal updates to deliver the best riding experience in our aluminum frames.


• Components subject to manufacturer changes

• Motor	Shimano STEPS EP800
  Battery	Simplo, internal 630Wh *optional external battery to extend capacity to 960Wh available
  Display	Shimano STEPS E7000
  Charger	Spec not provided

• Frame	Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor. *Optional external battery
  Fork	Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, lowspeed rebound, air preload
  Rear Shock	Fox Float DPS LV EVOL Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
  Front Brake	Shimano MT4120, 4 piston caliper, RT66 203mm IS 6 bolts rotor, resin pads
  Rear Brake	Shimano MT4120, 4 piston caliper, RT66 203mm IS 6 bolts rotor, resin pads
  Rear Derailleur	Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
  Shift Levers	Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
  Chain	Sram SX Eagle, 12s, Powerlock
  Cassette	Sram PG-1210, 11-50T, 12s
  Crankset	Shimano STEPS EM600, 165mm
  Chain Ring	Shimano E8000 34T, steel, 104 BCD
  Chain Guard	Spec not provided
  Rims	MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
  Front Hub	Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
  Rear Hub	Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolt
  Front Tire	Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
  Rear Tire	Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
  Handlebar	Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore
  Stem	Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
  Headset	Spec not provided
  Grips	Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL
  Saddle	Mondraker e-MTB custom design
  Seatpost	Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm

• Pedals	Not applicable
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

• 		S	M	L	XL
  Seattube length	A	380mm	420mm	450mm	490mm
  Toptube length	B	605mm	625mm	650mm	670mm
  Bottom bracket drop	C	-25mm	-25mm	-25mm	-25mm
  Bottom bracket height	D	336mm	336mm	336mm	336mm
  Chainstay length	E	455mm	455mm	455mm	455mm
  Seat tube angle	F	73.5°	73.5°	73.5°	73.5°
  Effective seattube angle	G	76°	76°	76°	76°
  Headtube angle	H	65.5°	65.5°	65.5°	65.5°
  Fork Offset	I	44mm	44mm	44mm	44mm
  Wheelbase	J	1225mm	1245mm	1265mm	1285mm
  Headtube length	K	110mm	110mm	130mm	130mm
  Reach	L	450mm	470mm	490mm	510mm
  Stack	M	622mm	622mm	640mm	640mm
