Empower Your Bass with Unmatched Versatility

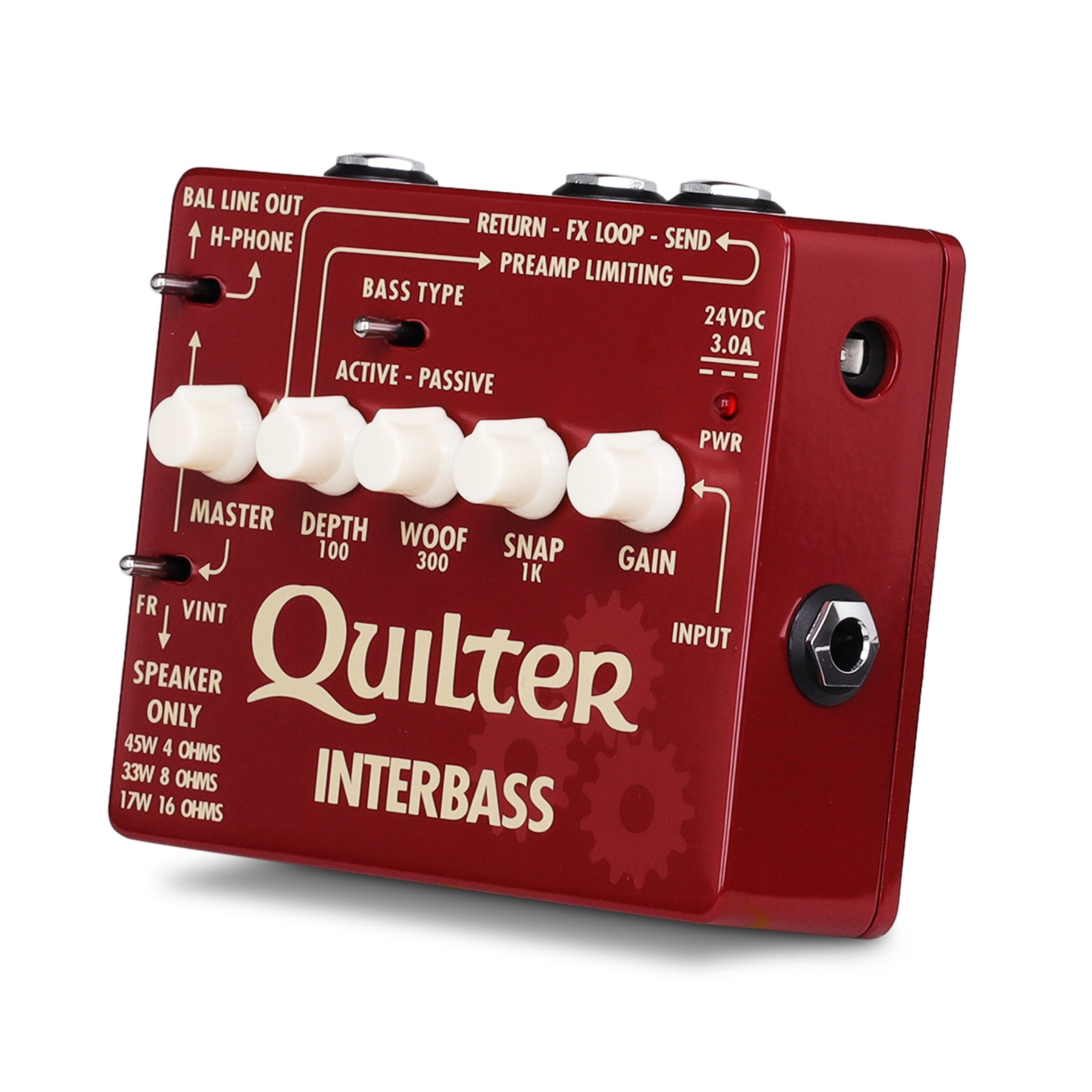

Introducing the Quilter InterBass, the ultimate tool for today’s bass player who faces the challenges of performing on silent stages and achieving high-quality recordings at home without disturbing the peace. The InterBass is a pedal-sized powerhouse, combining the best features of the Bass Block signal path with Quilter’s innovative direct-out connectivity setup.

Dynamic Processing and Tone Shaping

The InterBass is equipped with unmatched dynamic processing, courtesy of the Bass Block preamp, and a versatile 3-band EQ section. Whether you’re dialing in deep lows with the ‘Depth’ knob, adjusting midrange punch with ‘Woof’, or adding clarity with ‘Snap’, the InterBass provides powerful tone shaping to suit any genre.

Silent Practice and Powerful Performance

With up to 45 watts of power, the InterBass is perfect for practice sessions and small gigs alike. It offers an Active/Passive switch to optimize input level, ensuring your bass is heard just the way you want it. The FR/VINT switch allows you to select between a modern full-range bass response or a mellower, old-school tone.

Connectivity for Every Scenario

The InterBass boasts an active Effects Loop, switchable Cab Sim, and selectable Headphone/Line driver, making it a versatile choice for going direct to PA systems and recording consoles. The Line Out feature provides a balanced signal pre-Master for live sound or post-Master for headphone monitoring.

Your Bass, Your Sound

The Quilter InterBass is designed to meet the demands of modern bassists. Whether you’re looking for a potent practice amp, a direct box for silent stages, or a reliable backup for your main rig, the InterBass is ready to deliver the performance you need with the convenience you desire.

• Features
  • Up to 45 watts
  • Active/Passive Switch
  • 3 band EQ (Depth/Woof/Snap)
  • Gain
  • Balance Line Out
  • Effects Loop
• Controls
  • Gain
  • EQ
  • Master
  • FR/Vint Switch
  • Active/Passive Switch
  • Line Out/Headphones Switch
• Specifications
  Electronic Performance

  Input	¼" mono, 2M input impedance
  Effects Loop	1V full scale, 1K Send impedance, 47K Return impedance
  Signal Out (Front)	TRS, switchable, Line Out pre-Master +4dB balanced, or Headphone post-Master.

  Power

  AC Power	24 Volt Power Supply (included)
  Power Output	45 Watts 4 ohms; 33 Watts 8 ohms; 17 Watts 16 ohms

  Dimensions


  HxWxD	H 5" (12.7cm) x W 4" (10.16cm) x D 1.75" (4.45cm)
  Weight	0.65 lbs (0.3 kg)




• Resources
  • The manual contains detailed info for setup and technical specs.
