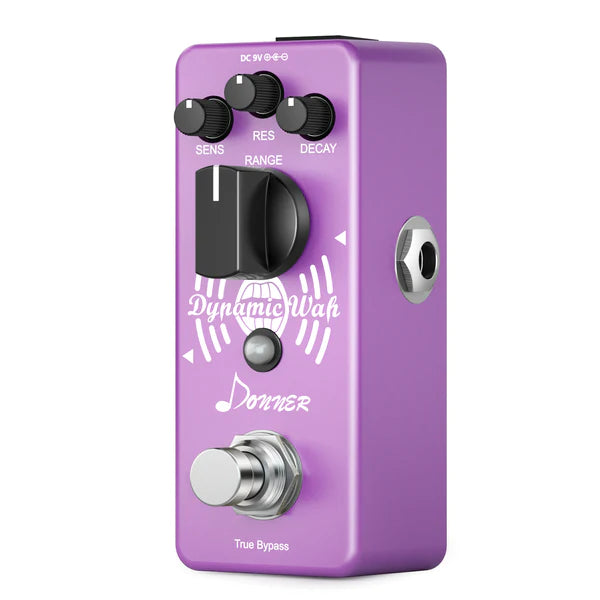

automatic wah pedal Donner EC1005 Wah-Wah Auto Wah Pedal – Easy Music Center

automatic wah pedal Donner EC1005 Wah-Wah Auto Wah Pedal – Easy Music CenterEasy controls, wide flexibility 4 parameter controls give you full access to effect details. SENS controls the sensitivity. RES controls the filter sharpness. DECAY controls the filter frequency to fall back to the resting point. RANGE controls the filter frequency range. Versatile Envelope Filter True bypass switch lets your instruments signal pass through a non electronic bypass line when the effect is disengaged, feeding your amp with direct,

Easy controls, wide flexibility
4 parameter controls give you full access to effect details.
SENS controls the sensitivity. RES controls the filter sharpness. DECAY controls the filter frequency to fall back to the resting point. RANGE controls the filter frequency range.

Versatile Envelope Filter
True bypass switch lets your instrument’s signal pass through a non-electronic bypass line when the effect is disengaged, feeding your amp with direct, unaltered signal from your instrument.
An analog auto-wah effect in the whole Aluminium-alloy stomp box.

Efficient chip
High-quality Electronic components and circuit design keep your tone clear and pure.
Fully controllable envelope filter with unique decay control, highly accurate, and very fast tracking. This crafty circuit enables incredibly responsive envelope performance, even during rapid-fire playing.

Features

• Power Supply: 9V DC
• Res Knob: Control the filter sharpness
• Sens Knob: Controls the sensitivity
• Decay Knob: Control the filter frequency that falls back to the resting point
• Range Knob: Adjust the filter frequency range
• Input & Output Jack: Analogy though 1/4’’ mono audio jack
• LED indicator shows the working state
• True bypass for zero tone coloration

Specs

• Input: 1/4″Monaural Jack.
• Output: 1/4″Monaural Jack.
• Working Current: 10mA.
• Dimensions: 92(D)*37(W)*32(H)mm.
• Net Weight: 200g.
