Description

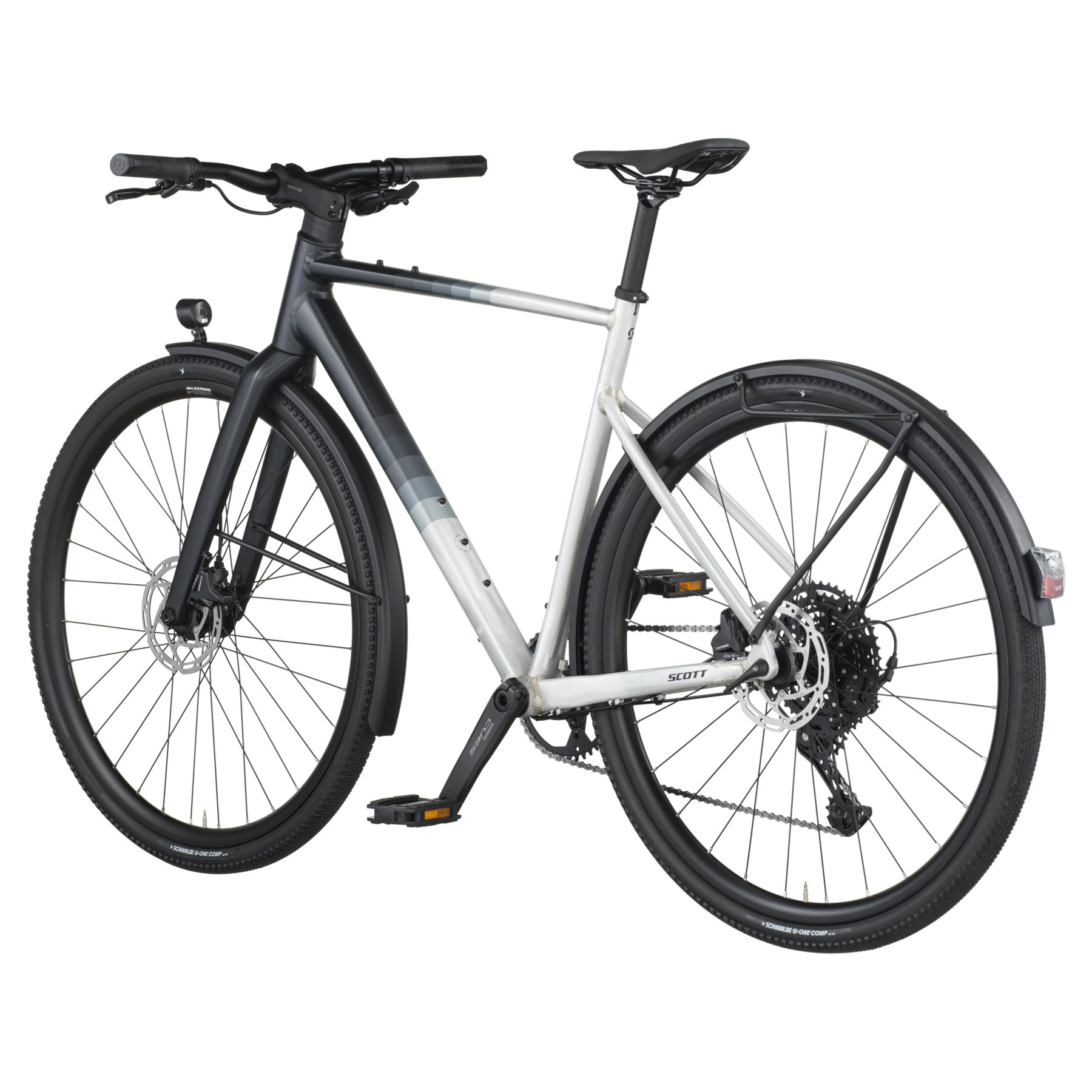

scott metrix 20 fitnessbike Scott Metrix 20 EQ Flat Bar Road Bike 2026The SCOTT Metrix 20 is your hyper commuter, ready for some real action on the road. It features an Alloy frame, fully integrated cables routing, a very sporty position on the saddle and high end components. Out in the hills or on your way to work, the Metrix will keep you fit and healthy. Please note that bike specifications are subject to change without prior notice. Specifications Frame Metrix Disc, 6061 D. Butted Alloy, Endurance geometry,
The SCOTT Metrix 20 is your hyper-commuter, ready for some real action on the road. It features an Alloy frame, fully integrated cables routing, a very sporty position on the saddle and high-end components. Out in the hills or on your way to work, the Metrix will keep you fit and healthy.
Please note that bike specifications are subject to change without prior notice.
Specifications
| Frame | Metrix Disc, 6061 D.Butted Alloy, Endurance geometry, Replaceable UDH Derailleur Hanger, fender included |
|---|---|
| Fork | Metrix HMF Disc1 1/4"-1 1/2" Eccentric Carbon steerer |
| Headset | Acros AIF-1113 |
| Handlebars | Syncros rise-Bar 3.0 640mm |
| Stem | Syncros RR2.51 1/4", four Bolt 31.8mm |
| Rims | Alex Race 25 Disc, 28 Front, 28 Rear |
| Spokes | Black 2mm |
| Front Hub | Shimano DH-UR705 Dynamo |
| Rear Hub | Formula Team II CL Disc 28 H |
| Tyres | Schwalbe G-One Comp, 700x40C |
| Shifter | Shimano CUES SL-U6000 |
| Rear Derailleur | Shimano CUES RD-U6000, 10 speed |
| Crankset | Shimano FC-U6030-1 42T |
| Cassette | Shimano CS-LG300, 10 Speed 11-48T |
| Chain | Shimano CN-LG500 |
| Bottom Bracket | Shimano BB-RS500 PF |
| Brakes | Tektro HD-R3020, flatmount |
| Brake Levers | Tektro HD-R3020, Clean cockpit |
| Rotors | Tektro rotor CL 160/F and 160/R |
| Seatpost | Syncros RR2.5 27.2/350mm |
| Saddle | Syncros Tofino Regular 2.5 |
| Pedals | Syncros urban flat |
| Lights | Spanninga X&O 15 XDOc, Spanninga Presto Guard XDvS |
| Extras | Syncros fender kit Allumee W45, Allumee fender side carrier |
| Weight | 12.9kg |
Geometry
| XXS | XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|---|
| Stack | 523.7 | 533.1 | 551.9 | 574.8 | 593.7 | 612.6 | 631.5 |
| Reach | 372.3 | 376.3 | 380.3 | 385.4 | 390.4 | 394.4 | 401.4 |
| Headtube Angle | 70 | 70 | 70 | 71 | 71 | 71 | 71 |
| Headtube Length | 98 | 108 | 128 | 148 | 168 | 188 | 208 |
| Seattube Angle | 75 | 74.5 | 74 | 73 | 72.5 | 72.5 | 72.5 |
| Seattube Length | 470 | 490 | 520 | 540 | 560 | 580 | 610 |
| Toptube (Effective) | 512.6 | 524.1 | 538.6 | 561.1 | 577.6 | 587.5 | 600.4 |
| Chainstay Length | 435 | 435 | 435 | 439 |
439 |
439 |
439 |
| Wheelbase | 1019.5 | 1026.9 | 1037.7 | 1044.9 | 1056.4 | 1067.0 | 1071.3 |
| BB Height | 283 | 283 | 283 | 283 | 283 | 283 | 283 |
| BB Drop | -71 | -71 | -71 | -71 | -71 | -71 | -71 |
| Standover | 747 | 762 | 786 | 806 | 825 | 844 | 869 |
| Stem Length | 73 | 83 | 93 | 103 | 103 | 113 | 113 |
