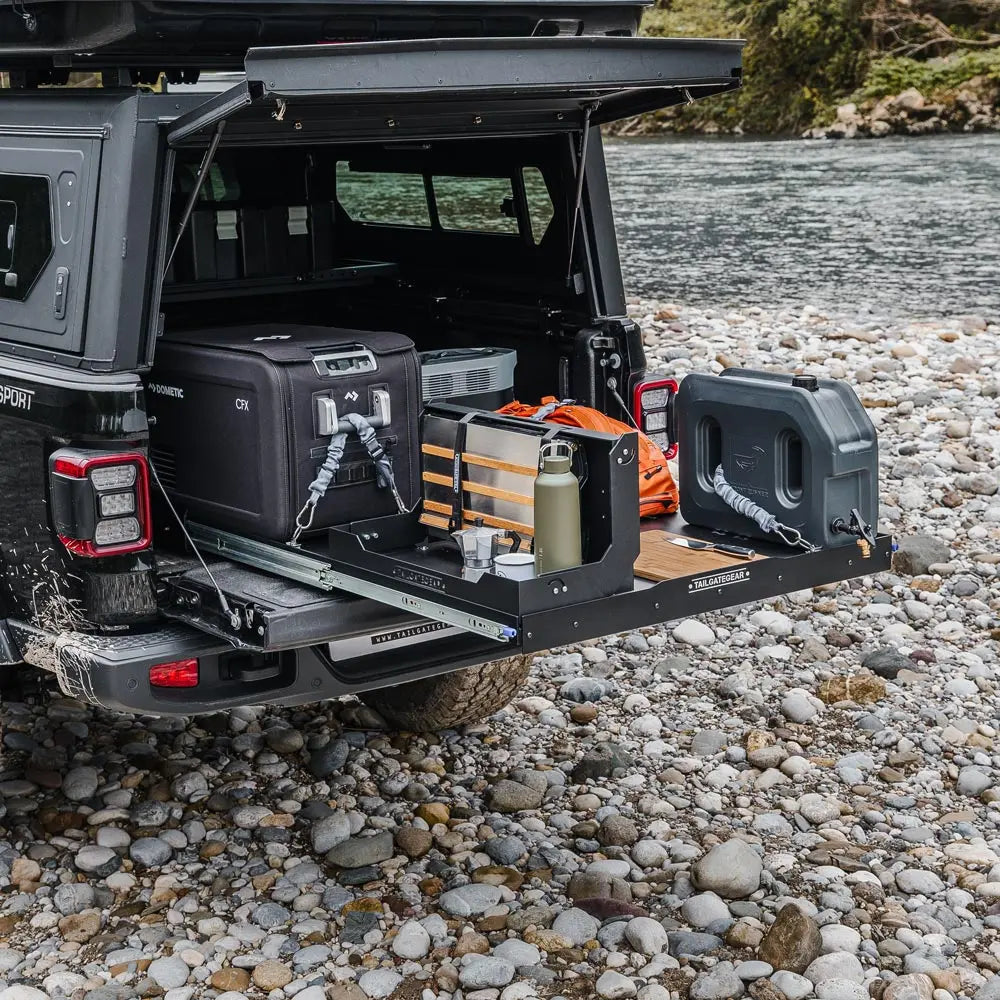

tailgate gear Pickup Cargo Slide

tailgate gear Pickup Cargo SlideA universal cargo slide to fit many pickups and offer a versatile storage solutions for your gear, luggage, fridges and cooler, boxes and tools. It fits well in all Double Cab trucks and offers plenty of space for storage and the possibility to access everything quickly and easily. If not in stock, production time is between 28 and 35 days. This one and all our modules are designed and Made in ITALY. FITTING FITS IN ALL MOST COMMON DOUBLE CAB

A universal cargo slide to fit many pickups and offer a versatile storage solutions for your gear, luggage, fridges and cooler, boxes and tools.

It fits well in all Double Cab trucks and offers plenty of space for storage and the possibility to access everything quickly and easily.

If not in stock, production time is between 28 and 35 days.

This one and all our modules are designed and Made in ITALY.

FITTING

• FITS IN ALL MOST COMMON DOUBLE CAB PICKUPS*.
• EASY TO INSTALL WITH FEW DRILL POINTS.
• CAN TAKE IT WITH YOU WHEN YOU CHANGE YOUR PICKUP.

Due to various load bed plastic covers, we strongly advise to double check the available length of your truck's bed before ordering.

SIZES

EXTERNAL WIDTH: 1050mm

EXTERNAL LENGTH: 1350mm

INTERNAL WIDTH: 990mm

INTERNAL LENGTH: 1344mm

HEIGHT FROM BASE: 60mm

MATERIALS

• THE BODY OF THE CARGO SLIDE IS MADE OF ALUMINUM.
• THE ALUMINUM IS POWDER COATED.
• THE HEAVY DUTY SLIDES ARE MADE OF STEEL AND RATED AT 225KG LOAD CAPACITY (AT 60CM EXTRACTION)
• TOTAL EXTRACTION OF 120CM.
• LOCK-IN / LOCK-OUT MECHANISM.

FAQ

Q: Do I need to drill to install the Cargo Slide in my pickup?

A: Yes, drilling is required to install the slide in your vehicle. The only exception is the Ineos Quartermaster for which you can use the existing threaded holes built into the load bed.

Q: Can I drill in to the Cargo Slide to mount additional items?

A: While we do not recommend altering the product and void our warranty, we can confirm that the Cargo Slide is made of aluminum and it is easy to drill through with the added benefit of being rust-free.

Q: I have a drawer from Tailgate Gear, can I mount it on the Cargo Slide?

A: Yes, if your Tailgate Gear Drawer is the 49cm width model, you can mount it on top of the Cargo Slide.

Q: Does the Cargo Slide require any maintenance?

A: The only elements that may require a checkup once in a while are the slides to make sure they are greased up.

Q: Does the Cargo Slide lock into position when closed or open?

A: Yes, the slides have 2 lock position to make sure the slide does not open and does not close when on uneven terrains.

Q: Does the Cargo Slide come pre-assembled?

A: Yes, you will receive a pallet with the pre-assembled slide and instructions on how to best install it.

Q: What is the maximum load the slide can support when fully extended?

A: The load capacity of a fully extended slide depends on both the rails rating and the position of the load.
Rails load ratings are defined with a distributed load and the center of gravity approximately at half the rails length. When the slide is fully extended and the load is placed at the front edge, the allowable load is reduced due to increased leverage.

Example: A pair of 1100mm rails rated 225 kg at 450 mm will support about 45 kg at the front edge of a 1100 mm fully extended slide, including the weight of the slide.

Of course that is counterbalanced by the total weight when well distributed on the slide. So LOAD DISTRIBUTION IS KEY on the slide, with heavy items best placed towards the back of the slide.
