Description

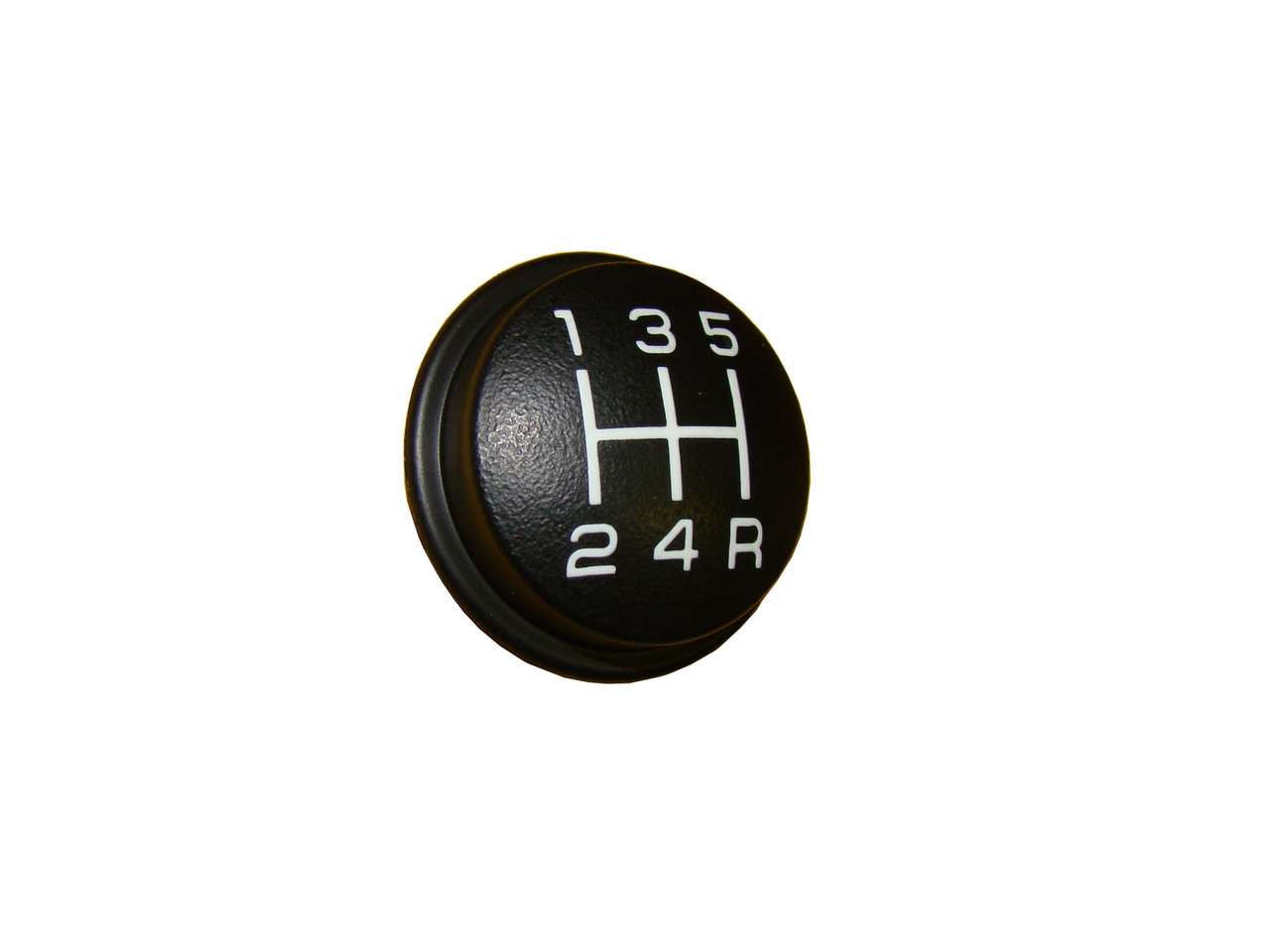

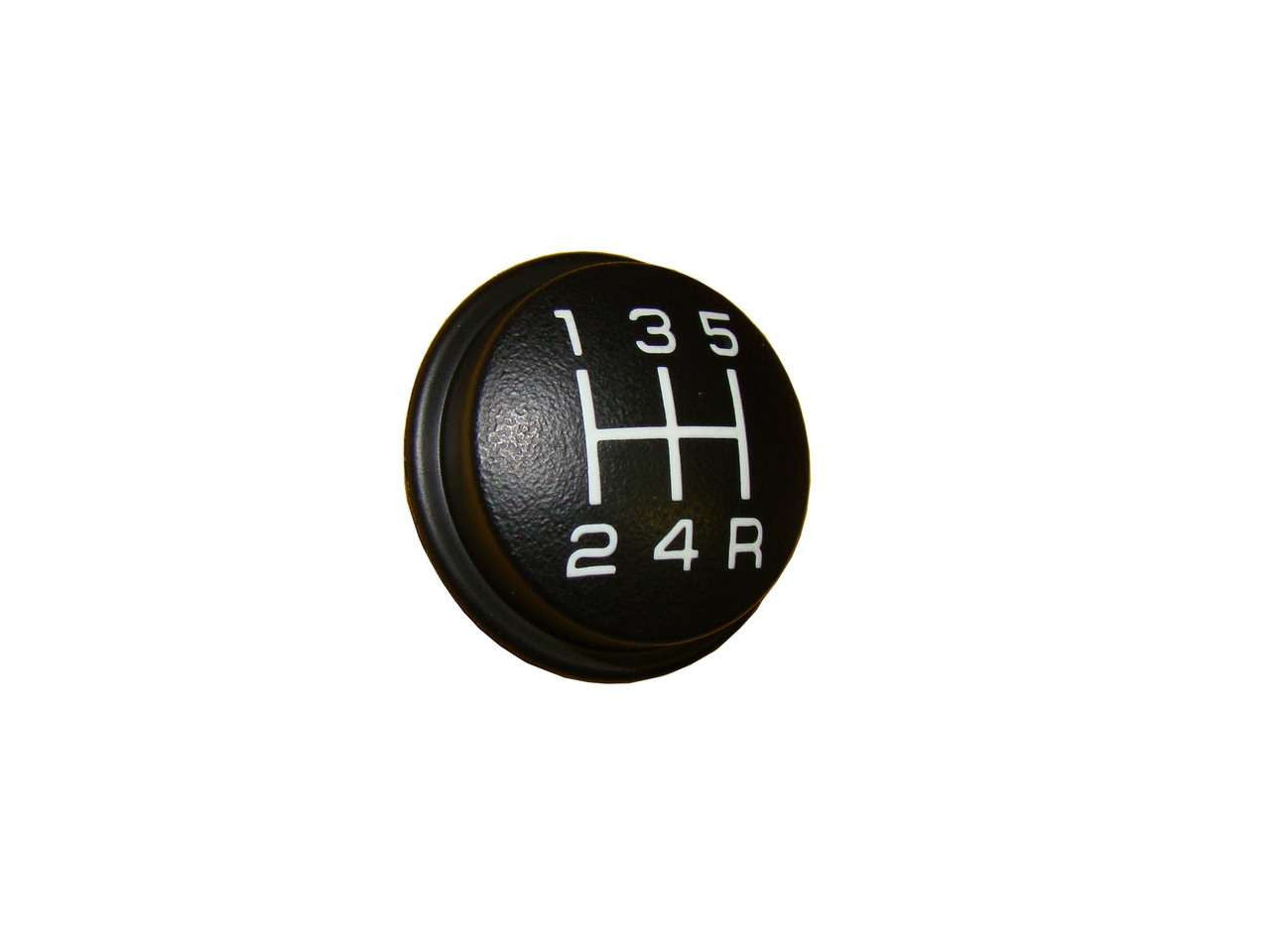

manual gear stick QU10525 Dodge NV500 Transmission Shift Pattern Insert for 1994 Ram 3500QU10525 Dodge NV500 Transmission Shift Pattern Insert fits 1994 2005 Dodge factory shift knobs in Ram 2500 and Ram 3500 trucks with New Venture NV4500 5 speed manual transmissions. USA Made. Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project! Dan the Gear Man Tech Notes: When Installing
QU10525 Dodge NV500 Transmission Shift Pattern Insert fits 1994-2005 Dodge factory shift knobs in Ram 2500 and Ram 3500 trucks with New Venture NV4500 5 speed manual transmissions. USA Made.
Need More Info? Use the handy Links below to access over 40 years of Dan's product and vehicle specific Tech Notes to easily get the information you need for your vehicle's repair, maintenance, or upgrade project!
Dan the Gear Man® Tech Notes:
When Installing
Matching Parts
NV4500 Tools
Lubricants, Sealants, Threadlockers
Tech Note 1: When Installing
Use a small, flat blade screwdriver when installing the shift pattern insert.
Tech Note 2: Matching Parts
The Matching Parts for QU10525 5 Speed Insert are:
QU10548 14mm Threaded Shift Lever
QU10547 Screw On Shift Kno
QU10539 Locknut, Knob
QK1127 Shift Tower Kit for 1998-2005 Dodge
QK1027 Shift Lever and Stub Kit for early NV4500 Shift Covers with integral towers
QK1123 Shift Stub Kit for early NV4500 Shift Covers with integral towers
QU10047 Bolt-On Shift Tower with 14mm Coarse Thread for 1998-2005 Dodge
QK1025 Shift Lever Kit
Tech Note 3: NV4500 Tools
Need Torque Specs or Rebuild procedures? Order my 116 page, full color illustrated TM1003 NV4500 Rebuild Manual.
You will need some special tools to correctly service your NV4500 Transmission. The chart below lists our current NV4500 Special Tools for popular models.
TOOLS for SPECIFIC NV4500 MODELS | ||||||
| Component |
23 Spline Dodge 4x4 NV4500LD |
29 Spline Dodge 4x4 NV4500HD | 30 Spline Dodge 4x2 NV4500LD |
31 Spline Dodge 4x2 NV4500HD |
32 Spline GM 4x4 |
35 Spline GM 4x2 |
| Mainshaft Nut | QT2002 |
QT2001 QT2036 | QT2002 |
QT2001 QT2036 |
QT2002 QT2028 | 1-1/2" Hex Socket |
| Mainshaft Holding | NLA | QT2000 | NLA | QT2011 | N/A | N/A |
|
5th Gear Nut Torx® Cross Bolt | N/A | QT9205 | N/A | QT9205 | N/A | N/A |
| Output Seal Installer | N/A | QT1801 | N/A | QT2058 CALL | Not Used | Not Used |
| Tailshaft Bushing Remover and Installer | Not Used | Not Used | Not Used | QT2044 | Not Used | Not Used |
TOOLS For ALL NV4500 MODELS | ||||||
|
Countershaft Front Bearing Cup Installer | QT1802 | Use with QT1101 or QT1119 Driver Handle. Also can use flat side to install Dodge 4x4 Rear Output Seal | ||||
| Countershaft Front Bearing Installer | QT2004 | Can also use to press 3-4 Synchro Hub on original equipment mainshafts | ||||
| Input Bearing & Countershaft Rear Bearing Installer | QT2005 | Can also use to install Input Seal | ||||
| Input Bearing Cup Installer | QT1801 | Use with QT1100, QT1101, QT1116, or QT1119 Driver Handle. | ||||
| Countershaft Support | QT2006 | Use to support front of countershaft when installing countershaft rear bearing | ||||
| 1-2 Synchronizer Support | QT2008 | Use to support 1-2 synchronizer hub during synchronizer assembly | ||||
| 10mm 1/2" Drive 12 Point Socket | QT1020 | USA Made Impact Socket for Factory Tailshaft Housing Bolts | ||||
| Long Shank Punch for Shift Lug | QT9300 | 3/16" x 8" Shank for 5th Gear Shift Lug Roll Pin | ||||
Tech Note 4: Lubricants, Sealants, Threadlockers
Early production NV4500 Transmissions used an anaerobic sealant (QU90003) to seal between the main case and input bearing retainer, top cover, and rear housing. Mid-production units used anaerobic sealant just on the input retainer and RTV for everything else. Later production transmissions used black RTV Sealant (QU90006 or QU90005) for everything. Either type of sealant works fine (except the PTO covers ALWAYS should be sealed with RTV), but I prefer RTV for all components. Regardless of which sealant you use, make sure excess sealant does not block the lube access hole at the top of input retainer pilot that fits into the transmission case. Also, the threaded holes in the main case for the four retainer bolts and 12 PTO bolts are open ended, so you must use new bolts with factory applied threadlocker or apply Threadlocker (S24200) to your existing bolts to prevent oil seepage past the bolt threads. See my TM1003 NV4500 Shop Manual or V1003DVD NV4500 Overhaul Video for more information.
Lubricant and Chemical List for NV4500 Transmissions
QU90020 NV4500 Manual Transmission Oil
QU90003 Anaerobic Sealant
QU90006 3.35 oz Ultra Black RTV Sealant
QU90005 0.5 oz Ultra Black RTV Sealant
S24200 6ml Threadlocker
S9978 1 gram Threadlocker
QU90003 Anaerobic Sealant
QU90006 3.35 oz Ultra Black RTV Sealant
QU90005 0.5 oz Ultra Black RTV Sealant
S24200 6ml Medium Strength Blue Threadlocker
S9978 1 gram Medium Strength Blue Threadlocker
S9979 1 gram High Strength Red Threadlocker
S24026 High Temperature Threadlocker for Mainshaft Nut
Applications
Dodge:
Ram 2500, Ram 3500 with NV4500HD 5 Speed: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Ram 2500, Ram 3500 with NV4500LD 5 Speed: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
