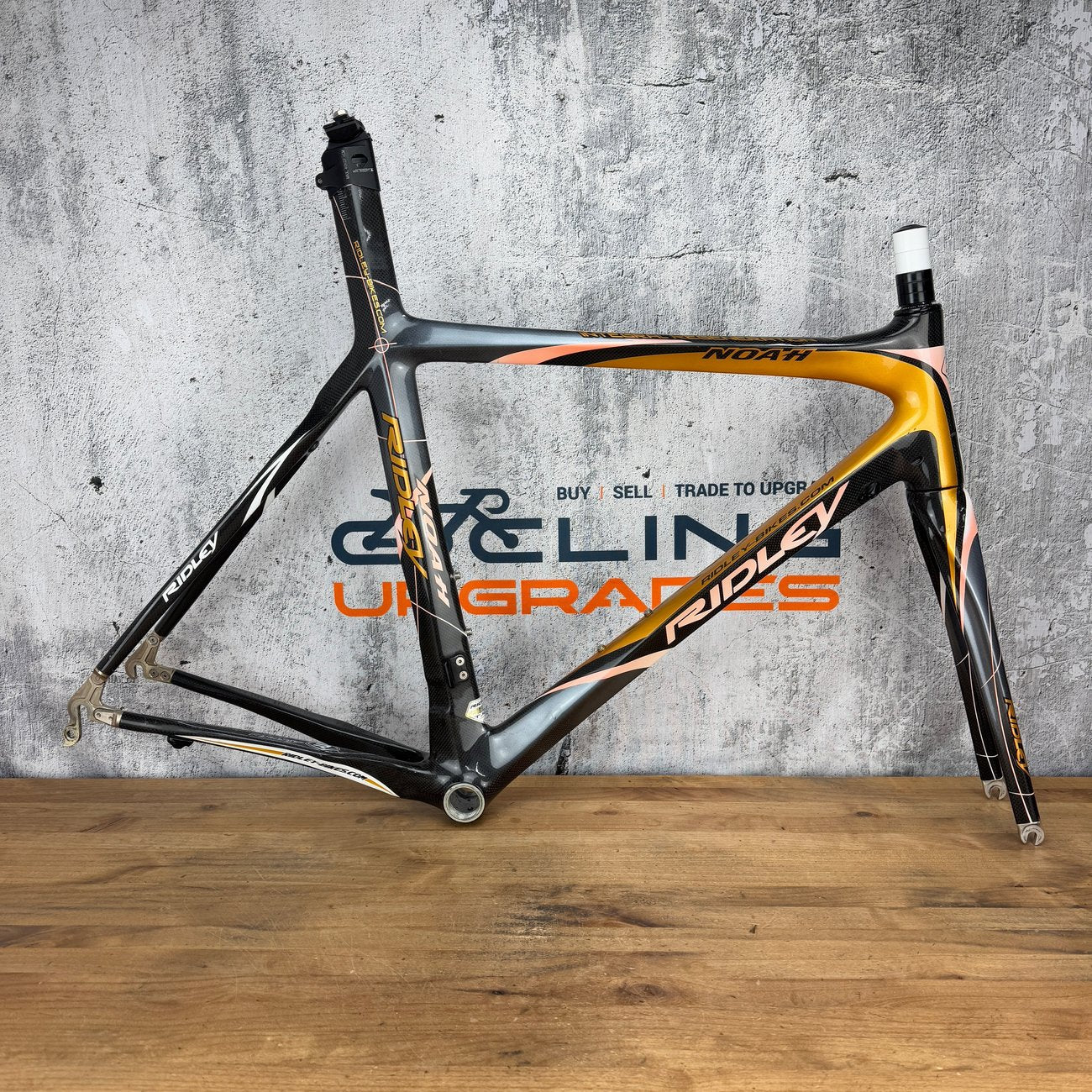

Frame: 2007 Ridley Noah

Color: Gold, and black

Tire Clearance: 700c x 28mm

Brake type: Center-Mount rim brake

Size: Medium. 56.5mm Effective Top Tube. Seat tube center to center - 500. Actual top tube -550. Head tube 175mm. Recommend buyer confirm and research full geometry online.

Condition: No cracks or carbon defects were identified through a thorough visual inspection. The cosmetic imperfections to highlight include: Some scratches on the chainstays shown in pics #6 & 7, some scratches on the head tube shown in pic #8. We have attempted to show all noticeable imperfections in specific close-up pictures, however other minor imperfections and light signs of use may exist.

Groupset compatibility: Frame can be setup for eTap or mechanical groupsets. This frame is not compatible with Di2, or EPS setups. Mechanical cable guide below the bottom bracket intact.

Bottom bracket: English threaded bottom bracket shell type. No bottom bracket is currently installed or included. We have a handful of lightly used basic bottom brackets on hand, let us know what you need and we can try to ship the frame with the right bottom bracket installed. Additionally, CyclingUpgrades is a Ceramicspeed and Cane Creek Authorized Dealer, if you prefer to have the frame setup with a certain bottom bracket we can add and install it at an additional cost before shipping - message with inquiries/requests.

Steerer length: 75mm of steerer above the top tube. 30mm of spacers below the stem plus the headset cover. We do have an option available to safely extend the steerer tube by 15-18mm - message us for additional details.

Seatpost: Seatmast height is 670mm from center of bottom bracket. The minimum height to saddle rails is 6900mm, and the maximum height to the saddle rails is 710mm. Add your saddle stack height to determine max saddle height from center of bottom bracket. Seatmast cap included.

Dropout Spacing: QR x 100mm front, QR x 130mm rear.

Weight: 2236 grams as pictured with headset, seatmast cap, frame hardware, etc.

What's included: Frame, fork, headset, seatmast cap.
