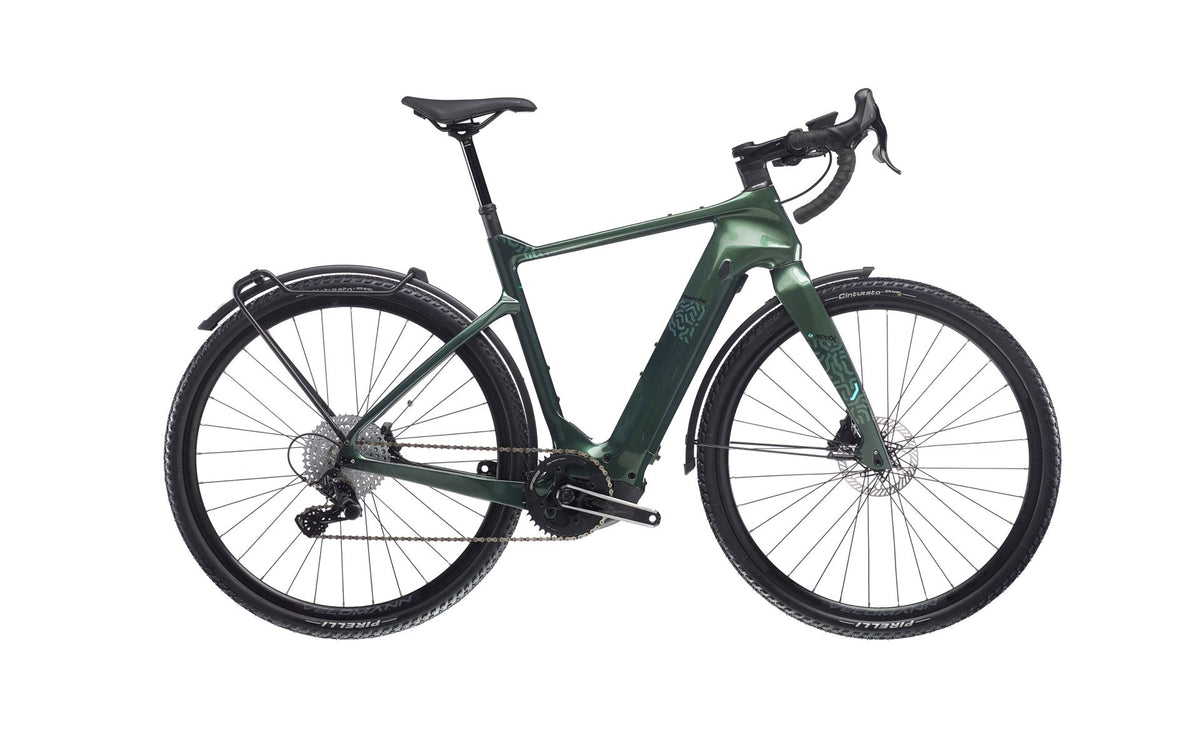

e-gravel bike 500wh Bianchi Arcadex E-Tourer BOSCH 500WH E-Road/Gravel Bicycle

e-gravel bike 500wh Bianchi Arcadex E-Tourer BOSCH 500WH E-Road/Gravel BicycleFuel your desire to explore by pushing yourself further and further on both paved and dirt tracks. ENGINE UNIT MOTOR Bosch Performance Line CX drive unit DRUMS Integrated Bosch Powertube 500Wh battery CHASSIS FRAME KIT E Road ARCADEX aero carbon, mechanical electronic, 1. 5"" 1. 5" headtube, integrated seat clamp, full carbon dropout, DT ST aero shape, disc brake yoke mount, E Thru system, 12x142mm sizes XS SML XL FORK Full Carbon 1. 5" flat mount,

Fuel your desire to explore by pushing yourself further and further on both paved and dirt tracks.

• ENGINE UNIT

  1. MOTOR

     Bosch Performance Line CX drive unit

  2. DRUMS

     Integrated Bosch Powertube 500Wh battery

• CHASSIS

  1. FRAME KIT

     E-Road ARCADEX aero carbon, mechanical/electronic, 1.5"" - 1.5" headtube, integrated seat clamp, full carbon dropout, DT-ST aero shape, disc brake yoke mount, E-Thru system, 12x142mm sizes XS- SML-XL

  2. FORK

     Full Carbon 1.5" flat mount, disc brake, 12x100mm thru axle

  3. HEADSET

     FSA SMR HS with 1-1/8” top taper Internal headset, custom integrated alloy top cup 1.1/8"", 1.5"", 36°/45° ACB

• TRANSMISSION

  1. COMMANDS

     Shimano GRX 600 11s, hydraulic disc brake

  2. EXCHANGE

     Shimano GRX, 11-SPEED, TOP NORMAL, SHADOW PLUS DESIGN, DIRECT ATTACHMENT

  3. CRANKSET

     FSA E-Bike Forged Crankset - ISIS / 165mm - 170mm - 175mm / without crank bolt

  4. CENTRAL MOVEMENT

     Included in the motor unit

  5. CHAIN

     KMC e11 EPT Rust Remover - 1/2" x 11/128"

• BRAKES

  1. BRAKES

     Shimano BR-RX400 hydraulic disc brake included in the gearbox

  2. BRAKE LEVERS

     included

  3. DISCS

     Shimano, RT-MT800, S 160MM

• WHEELS

  1. REAR HUB

     Formula, center lock, J-bend, 12xx142mm thru axle, w/o bearing QR 4SB for Shimano 10/11 speed

  2. FRONT HUB

     Formula, 32h alloy, center lock, J-bend, 12x100mm thru-axle, w/o QR

  3. TIRES

     Continental Terra Trail ShieldWall

• HANDLEBAR

  1. HANDLEBAR STEM

     Velomann, Alloy 6061 , 1 1/4", raise 0°, Oversize, plastic adapter for 1 1/4" cap, Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL

  2. FOLD

     Velomann Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120, Dimensions: 400mm-XS/S, 420mm-M/L, 440mm-XL

  3. TAPE/GRIPS

     La Spirale Ribbon cork + new carbon look plug with Bianchi logo

• SADDLE

  1. SEAT POST

     Velomann AL6061, alloy head, 15mm offset, 31.6mm, Length: 300mm/XS - SM ; L350mm/MD - LG -XL

  2. SADDLE

     Velomann, black steel rail, open, PU cover, length/width 250x148mm

• ACCESSORIES

  1. MUDGUARDS

     SKS A46 profile, XELTEC integrated taillight

  2. REAR LUGGAGE RACK

     SKS Infinity GT3

  3. FRONT LIGHTS

     Supernova - 235 lumens

  4. REAR LIGHTS

     Integrated into the mudguard

Bianchi reserves the right to make changes, based on the availability of components, without notice
