Description

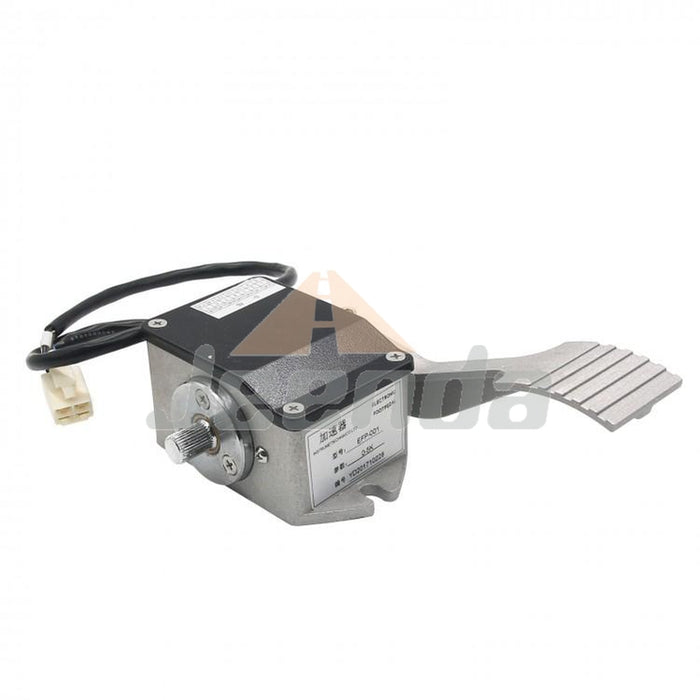

foot pedal throttle electric Jeenda Throttle Foot Electric Accelerator EFP-005 0-5K EFP713-0502 for — JEENDAPart Number: EFP 005 0 5K EFP713 0502 Application: EV Curtis Pedal Throttle 0 5K Product Description: Potentiometer Throttle (Foot Pedal) 0 5K Speed Signal Device (3 Wire Pot Throttle) Model: EFP 005 Specifications: The foot pedal could be installed at both ends of rotating shaft Signal output: 0 5K 0. 1K (BI potentiometer P270 033B) Solid metal case, ingress protection: IP55 Installation kit is included: bolts, nuts and washes Mating connector is
Part Number:EFP-005 0-5K EFP713-0502
Application:EV Curtis Pedal Throttle 0-5K
Product Description:
- Potentiometer Throttle (Foot Pedal)
- 0-5KΩ Speed Signal Device (3-Wire Pot Throttle)
- Model: EFP-005
Specifications:
- The foot pedal could be installed at both ends of rotating shaft
- Signal output: 0-5KΩ ± 0.1KΩ (BI potentiometer P270-033B)
- Solid metal case, ingress protection: IP55
- Installation kit is included: bolts, nuts and washes
- Mating connector is included
- Net weight: 1.20 kg (with installation kit and mating connector)
Key Features:
- Model: EFP-005 (3-wire potentiometer throttle, working with CURTIS 1204M-4201 Series Motor Controller, CURTIS 1268-5403 SepEx Motor Controller and other controllers)
- Signal output: 0-5KΩ ± 0.1KΩ (BI potentiometer P270-033B)
- Switch on/off signal: 0V - power supply voltage
- Operation temperature range: -55℃ –120℃
- Storage temperature range: -40°C - 80°C
- Ingress protection: IP55
- Mechnical lifespan: 1,000,000 times
- Installation kit is included: bolts, nuts and washes
- Mating connector is included
- Net weight: 1.20 kg (with installation kit and mating connector)
- Package weight: about 1.55 kg
Attention:
- Wires: There are 5 wires, 3 of them are potentiometer wires, and another 2 is switch wires.
- Brown: Potentiometer Wiper
- Black: Potentiometer Low
- Red: Potentiometer High
- Blue: Switch Input (common)
- Yellow & Green: Switch Output (normally open)
- Notice: This is replacement, not original parts, but it can work well for you.
