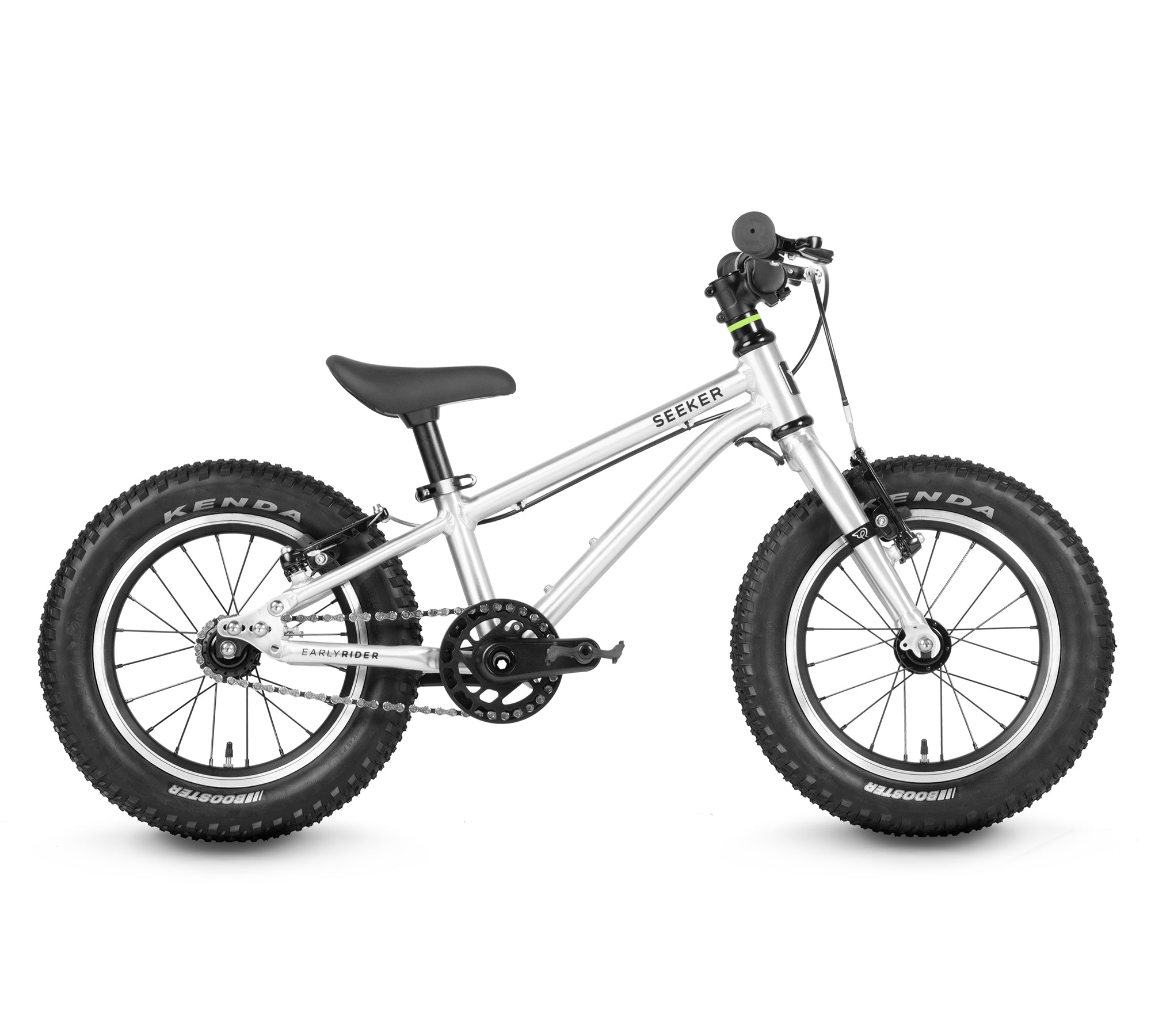

mountainbike 14 inch Seeker 14 (V-Brake) Brushed Aluminium

mountainbike 14 inch Seeker 14 (V-Brake) Brushed AluminiumLittle bike BIG attitude Perfect for young riders taking their first steps into the mountain biking world, the Seeker 14 is a MTB built for exploration and adventure. With improved geometrysuch as a lower bottom bracket for stability, slacker headtube angles for better handling, and a lower stand over height for easier mountingthis bike offers confidence on and off the trail. Featuring a single speed drivetrain with optimized gear ratios and short

Little bike BIG attitude...

Perfect for young riders taking their first steps into the mountain biking world, the Seeker 14 is a MTB built for exploration and adventure. With improved geometry—such as a lower bottom bracket for stability, slacker headtube angles for better handling, and a lower stand-over height for easier mounting—this bike offers confidence on and off the trail. Featuring a single-speed drivetrain with optimized gear ratios and short 80mm crank arms, it’s designed for smooth, easy pedalling. While sealed bearing wheels wrapped in Kenda Booster 2.2" tires provide grip, comfort and a controlled ride.

ASSEMBLY INSTRUCTIONS:

Your bike will arrive carefully packaged and boxed with both wheels attached. The handlebar will be zip tied to the top tube, simply remove the bars and all packaging and attach to the stem. Then simply add the pedals. Please retain your manual.

[Left column]

STANDOVER HEIGHT

370CM

FRAME

HAND BRUSHED AL6061, FORGED DROP OUTS

FORK

HAND BRUSHED AL6061, FORGED DROP OUTS

STEERER TUBE

AL6061

CRANKS

CRUX CNC'D AL6061, 80MM

PEDALS

RESIN PLATFORM, SEALED CARTRIDGE BEARING

BOTTOM BRACKET

CRUX EXTERNAL CUP, 24MM SEALED CARTRIDGE BEARING

RIMS

14 x 24H, DOUBLE WALLED AL6061

REAR HUB

FRONT HUB

CNC'D AL6061, SEALED CARTRIDGE BEARING

AXLES

AL6061

CHAIN

KMC X9

FRONT SPROCKET

CNC'D AL6061, 26T, AL6061 AXLE

*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*

CLICK HERE TO VIEW THE USER MANUAL

[Right column]

WEIGHT

5.9KGS W/O PEDALS

REAR SPROCKET

CNC"D AL7075, 15T

BRAKES

TEKTRO 837AL, 102MM ARMS

LEVERS

TEKTRO SHORT REACH JL352

FRONT TYRE

KENDA BOOSTER 14x2.25, 30TPI WB

REAR TYRE

KENDA BOOSTER 14x2.25, 30TPI WB

HEADSET

1 1/8” CONVENTIONAL, EXTERNAL CUP

STEM

FORGED AL6061, 35MM REACH, 6 BOLT

BARS

440MM DOUBLE BUTTED AL6061, 25MM RISE 19MM GRIP

GRIPS

ER 19MM SOFT TOUCH MUSHROOM 100MM

SEAT POST

AL6061, 25.4MM x 150MM

SADDLE

BLACK WING COMBO

SEAT CLAMP

ER BOLT, 28.6MM
