Description
e bike display bafang Bafang 750c Bluetooth Display for BBDHD & BBS02Bafang 750c Bluetooth Enabled Full Color Display for BBDHD and BBS02 Overview 3. 2inch IPS screen Dimensions: host L110mm*W68. 2mm*H68mm 24V 36V 48V 52V battery supply 9 level Assist: 3 level 5 level 9 level Bluetooth & Mobile navigation Phone battery indicator Clamps suit for 3 size of handlebar,31. 8mm 25. 4mm 22. 2mm Functions: Compatible with BAFANG MID DRIVE BBSXX Suitable for low temperatureMax 20. High contrast 3. 2 inch IPS colorful matrix

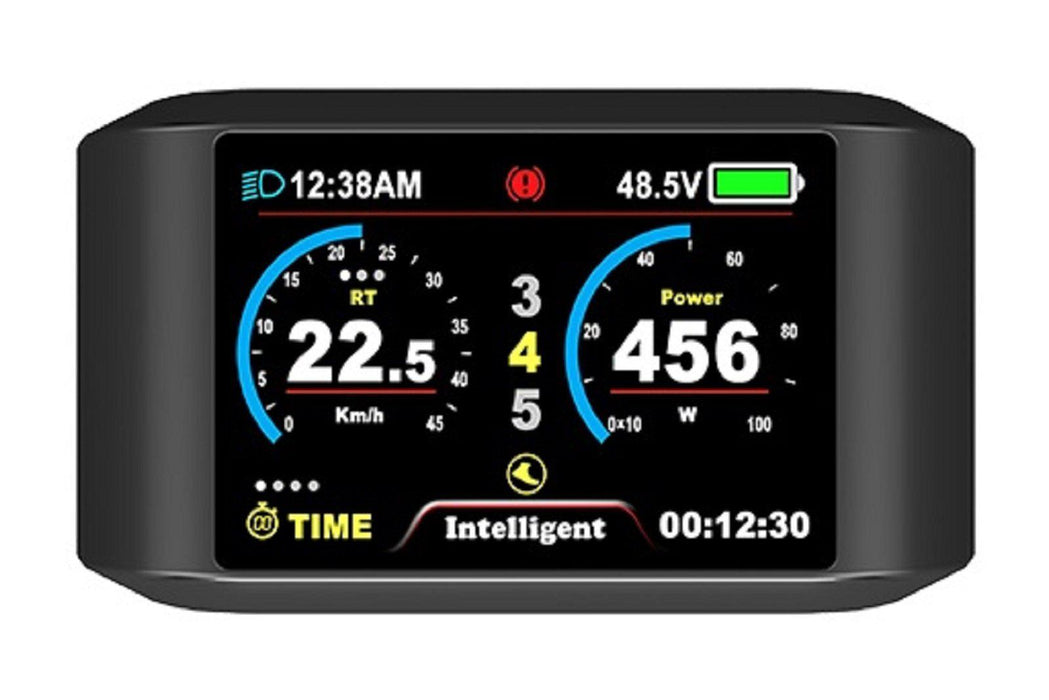

Bafang 750c Bluetooth Enabled Full Color Display for BBDHD and BBS02
Overview
- 3.2inch IPS screen
- Dimensions: host/L110mm*W68.2mm*H68mm
- 24V/36V/48V/52V battery supply
- 9-level Assist:3-level/5-level/9-level
- Bluetooth & Mobile navigation
- Phone battery indicator
- Clamps suit for 3 size of handlebar,31.8mm/25.4mm/22.2mm
Functions:
- Compatible with BAFANG MID DRIVE BBSXX
- Suitable for low temperature，Max-20℃.
- High-contrast 3.2 inch IPS colorful matrix screen
- Ergonomic external button design, easy to operate.
- Speed display: AVG SPEED,MAX SPEED,SPEED(Real-time).
- Kilometer/Mile: Can be set according to customers habits
- Smart battery indicator: Provide a reliable battery indicator.
- Mileage indicator: Odometer/Trip distance/Clock/Riding time.
- Power indicator: real-time power indicator, digital or analog.
- 6km walking
- Error code indicator
- Software upgrade: Software can be upgraded through UART.
PLEASE NOTE: This Bluetooth 750C is currently only supported by iPhone.
|
Type |
750C colorful display |
|
Nominal voltage |
24/36/48/52V |
|
Support Power Modes |
0-3/0-5/0-6/0-9 |
|
Handlebar Size Fitments: |
Ø 22.2/25.4/31.8 mm (with 2 sets of gaskets in the package from which to choose) |
|
Display cable length |
50cm including connector |
|
Display to button switch cable length |
22cm |
|
Connector |
5-pin base connector |
|
Application |
Just for Bafang BBS01 BBS02 BBSHD midmotors |
FUNCTION:
- High-contrast IPS dot screen.
- Set up Password of Turning on
- Speed display: RT SPEED MAX SPEED AVG SPEED.KM/ Mile
- Mileage: ODO, Trip, Time, Range.
- Clock.
- Power indicator.
- Error code.
- USB charging port: 5V/500mA.
- Software Update.
- Friendly HMI.
- 36V/48V compatible.
- IP-Code IP65
- Certifications CE/EN15194 Rohs
