Description

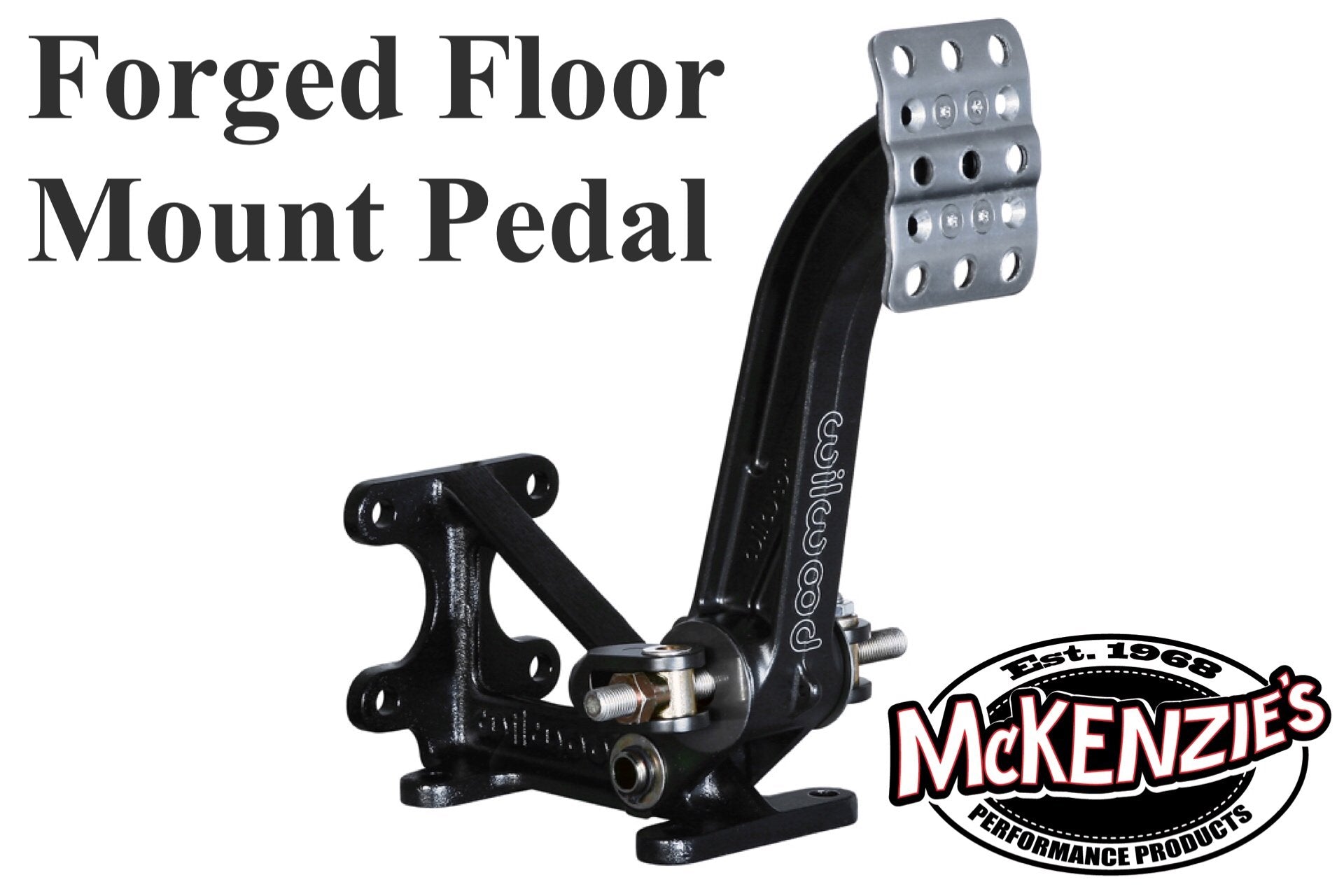

wilwood pedal Wilwood 340-13831 | Floor Mount Brake PedalPEDAL ASSEMBLY,6: 1,DUAL,M C,FORGED PEDAL This floor mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I Beam style forged 6: 1 ratio pedal arm. The non skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn
PEDAL ASSEMBLY,6:1,DUAL,M/C,FORGED PEDAL
This floor mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.
| Pedal Type | |
|---|---|
| Material | Aluminum |
| Finish | Black E-coat |
| Pedal Description | |
| Mount Loc | Floor |
| Mount Facing | Forward |
| Balance Bar | Yes |
| Mount Length (in) | |
| Pedal Ratio & Length | |
| Pedal 1 Ratio | 6.0 to 1 |
| Pedal 2 Ratio | |
| Pedal 1 Length (in) | 9.6 |
| Pedal 2 Length (in) | |
