nux pedals NUX Fireman Distortion Pedal NDS-5

nux pedals NUX Fireman Distortion Pedal NDS-5DescriptionDual Channel Brown Sound in a Box. FIREMAN is based on the legendary amplifier builder's famous distortion pedal. It's a very amp like distortion pedal with Modern Brown Sound. We designed it with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True bypass Buffer bypass toggle switch, and a 9V 18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range

Description

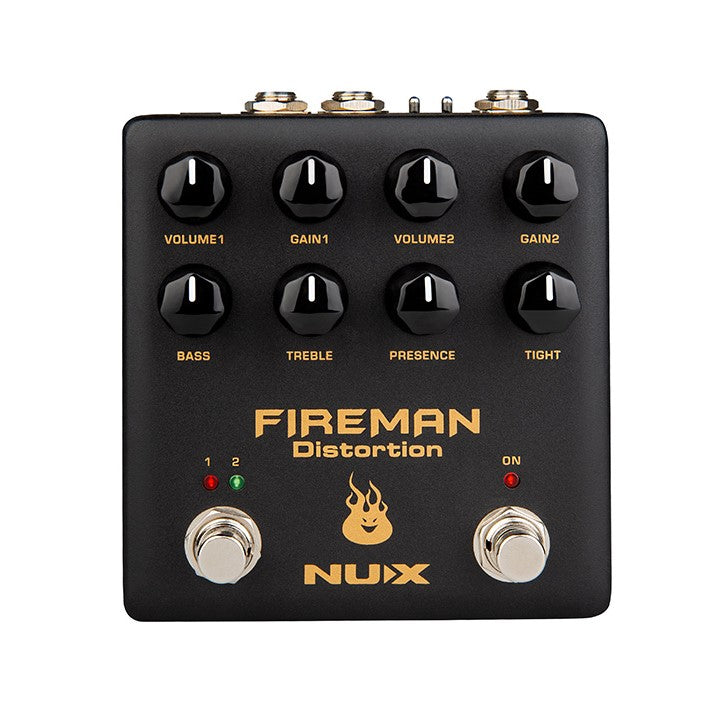

Dual Channel Brown Sound in a Box. FIREMAN is based on the legendary amplifier builder's famous distortion pedal. It's a very amp-like distortion pedal with Modern Brown Sound. We designed it with 2 independent VOLUME, GAIN control knobs to fit rhythm and solo applications. FIREMAN offers a True-bypass / Buffer-bypass toggle switch, and a 9V / 18V toggle switch. The 18V position doubles the working voltage inside to give you wider dynamic range

    Bass: Adjusts the low-end response of the distortion sound.
    Treble: Adjusts the high-end response of the distortion sound.
    Presence: sets the ultra-high frequency of the distortion sound.
    Tight: forms the low frequency content. (Lower it to tighten the sound.)
    Volume1: adjusts the output level in channel1.
    Gain1: adjusts the sound distortion situation in channel1.
    Volume2: adjusts the output level in channel2.
    Gain2: adjusts the distortion range of the sound in channel2.
    Footswitch 1/2: Chooses the current channel for 1 or 2.
    On Footswitch: Enables or disables the distortion sound.
    Input: Connects to your guitar or guitar side signal.
    Output: connects to amplifier or amp side.
    Ext. Sw: connects with extra double footswitches to replace the 2 footswitch function on the pedal.
    bf/tb toggle switch: bf means buffer bypass, tb means true bypass.
    18v/9v toggle switch: the pedal uses 9v power supply, you can choose the 18v position to double the working voltage inside to get a wider dynamic range.
    DC Jack: Connect with 9v negative peak power with 100mA adapter.
    Modern brown sound in a box.
    True-bypass / buffer-bypass toggle switch.
    18v/9v toggle switch to achieve different dynamic range.
    2 independent gain, volume knobs for rhythm / solo application.
    Frequency response: 20hz~20khz- ±1db
    Input impedance: 2.2m?
    Output impedance: 1m?
    Power supply: 9v dc, tip negative, acd-006a,
    Dimensions: 105 (l) × 115 (w) × 58 (h) millimeter
    Weight: 460g
