Description

allis chalmers planter seed hopper Allis-Chalmers 73 and 74 Series Planting Units ManualAllis Chalmers 73 and 74 Series Planting Units Operator's Manual This 108 page operator's manual is the original factory guide for the Allis Chalmers 73 and 74 Series planting units, covering setup, operation, field service, and adjustment. Delivered as a searchable digital PDF so you can zoom in on diagrams and print only the pages you need in the shop or field. About the Allis Chalmers 73 and 74 Series Planting Units Produced in the early to mid

Allis-Chalmers 73 and 74 Series Planting Units Operator's Manual

This 108-page operator's manual is the original factory guide for the Allis-Chalmers 73 and 74 Series planting units, covering setup, operation, field service, and adjustment. Delivered as a searchable digital PDF so you can zoom in on diagrams and print only the pages you need in the shop or field.

About the Allis-Chalmers 73 and 74 Series Planting Units

Produced in the early to mid 1970s, the 73 and 74 Series were Allis-Chalmers' row-crop planting units designed for toolbar-mounted planter configurations. Both units shared the same core seed metering system — horizontal plate design with interchangeable seed plates — but differed in their depth control: the 74 unit used depth bands on the opener, while the 73 relied on a depth skid. That single difference made the 74 better suited to consistent-depth planting in worked ground, while the 73 was the simpler, more adaptable unit. Both were capable of planting corn, cotton, beets, and other small seed crops with the appropriate plate and hopper configuration.

These units were built during the same era Allis-Chalmers was pushing hard into planter monitor technology, and the manual reflects that — covering the AC-1 non-counting and AC-3 counting monitor systems, console wiring, and sensor installation. If you're running original AC monitors on these units, this is the documentation you need.

What This Manual Covers

  • Setup and assembly — press wheel adjustments, gang arm brackets, parallel links, unit drive chain, and covering equipment installation for both 73 and 74 units
  • Seed metering and plate selection — seed hopper inspection, false ring setup, center bearing and cut-off tongue adjustment, and changing seed plates for corn, cotton, beet, and small seed crops
  • Plant population and spacing charts — factory reference tables for dialing in seed rate and row spacing across crop types
  • Depth control — depth band setup for 74 units, depth skid adjustment for 73 units, gauge wheel configuration, and weight transfer and down pressure spring settings

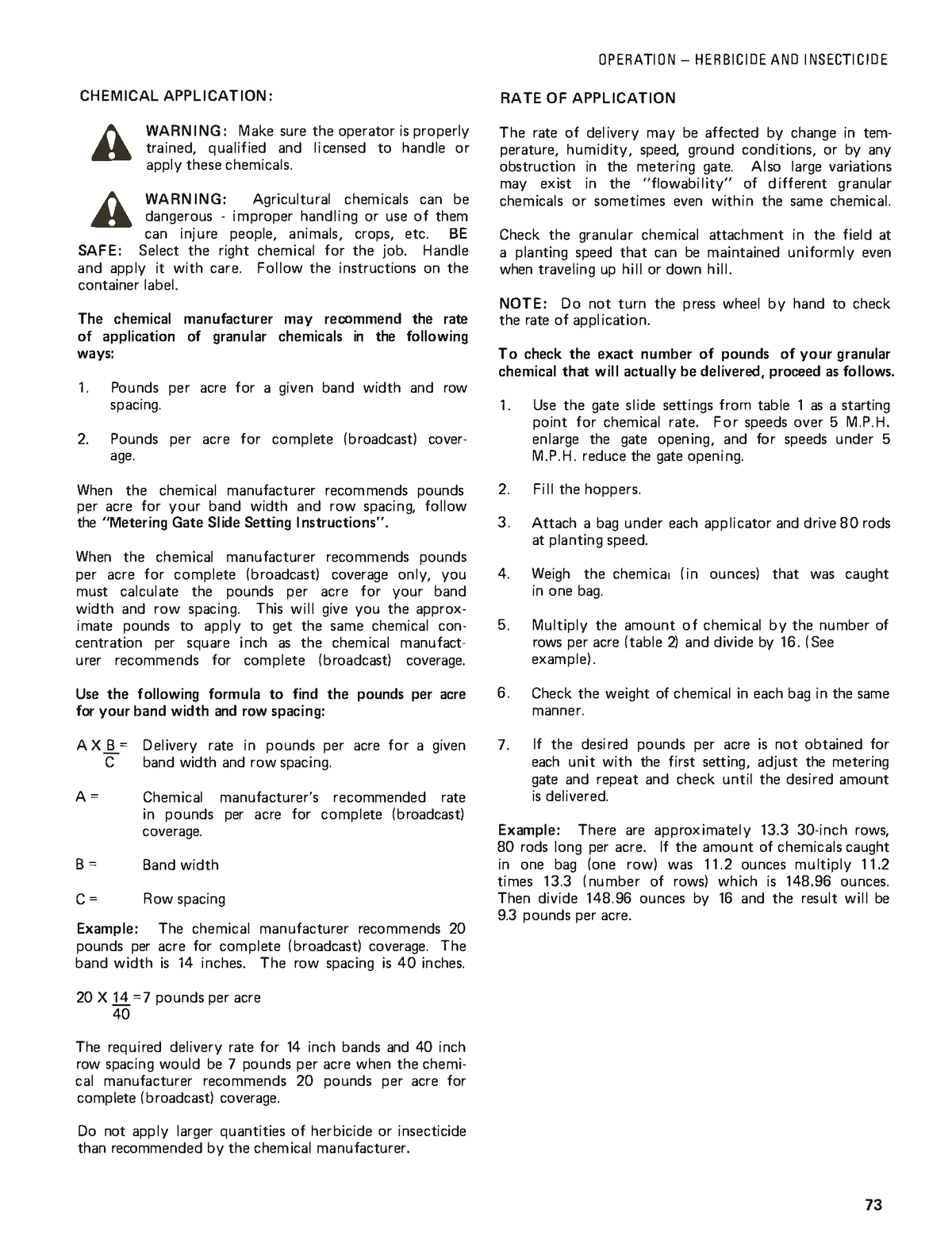

  • Herbicide and insecticide application — metering control setup, chemical rate calibration, metering gate slide settings, field operation, and hopper cleaning procedures
  • Planter monitor systems — full coverage of the AC-1 non-counting and AC-3 counting monitors, console display and wiring, battery connections, signal cable routing, sensor installation and servicing, and console tests for 4, 6, 8, and 12-row configurations
  • Field service and troubleshooting — diagnostic tips for both monitor models and photo-electric sensor servicing

Why This Manual Matters

  • Original factory seed plate charts — the correct plate numbers and population settings for each crop, not guesswork or aftermarket approximations
  • Monitor wiring and sensor diagrams — the AC-1 and AC-3 monitor systems are nearly impossible to troubleshoot without the original schematics, and generic wiring guides won't match the AC-specific harness routing
  • 73 vs. 74 specific procedures — depth skid setup for the 73 and depth band setup for the 74 are covered separately with the correct adjustment specs for each unit
  • Chemical application calibration — factory metering gate settings and application rate tables for herbicide and insecticide attachments, critical for accurate in-furrow treatment

Manual Code: 261571
