PXN Vector X Pedals: Professional Precision for Demanding Simracing

The PXN Vector X Pedals are designed to offer an ultra-precise driving experience in racing simulators. With an all-metal construction, advanced sensors, and a multi-dimensional adjustment system, these pedals elevate your on-track performance. Ideal for those looking for a load cell brake pedal, total accelerator control, and a solid foundation to progress in simracing.

Competitive Advantages that Make a Difference

• Extreme braking precision thanks to a pressure sensor up to 200 kg
• Instant and smooth response in the accelerator with a friction-free structure
• Premium construction in stainless steel, CNC aluminum, and carbon fiber
• Realistic progressive feel adjustable to your driving style
• Dual-sensor technology for maximum fidelity in every input
• Modular system with the option to add a clutch pedal

Key Features of the Vector X System

• Sensor System: Dual fusion (angle + pressure) with X-CROSS algorithm
• Brake: 200 kg pressure sensor + adjustable progressive response
• Accelerator: 24-bit magnetic encoder (up to 16.77 million signals)
• Construction: 30 series stainless steel + CNC aluminum + carbon fiber
• Internal Structure: Multi-bearings with no play or vibrations
• Damping: High-density silicone sleeves (less noise, more smoothness)

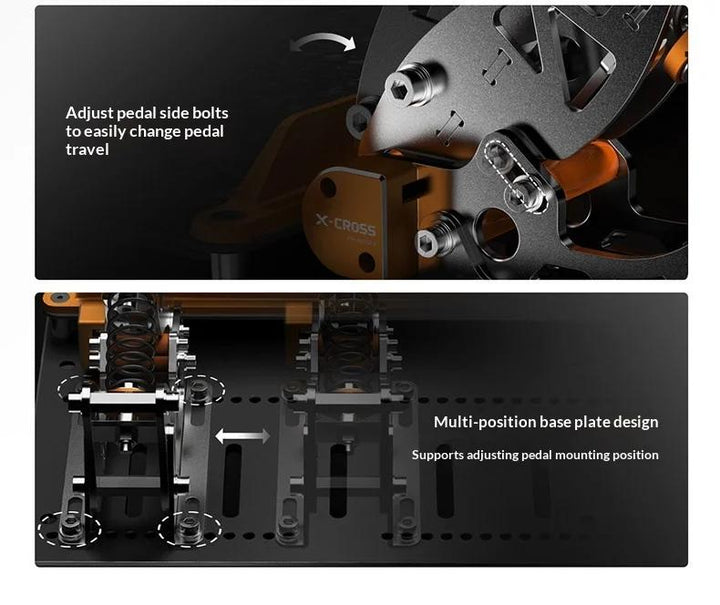

• Physical Adjustments: Fully adjustable travel, angle, height, and position
• Software: PXN SimRacing with advanced calibration and custom settings
• Control Box: 3-mode transmission architecture + 24-channel ADC

Engineering Inspired by Real Competition

The design of the Vector X is inspired by the mechanics of compound bows, transferring that controlled tension and precise release to each press. This translates into an experience where every input counts: from threshold braking to progressive acceleration out of a corner.

The system eliminates vibrations, play, and delays, offering a direct connection between driver and simulator. Perfect for titles like iRacing, Assetto Corsa, or rFactor 2, where precision makes all the difference.

Compatibility and Ecosystem

• Platform: PC (Windows)
• Connection: USB (5V power)
• Compatible Software: iRacing, Automobilista 2, rFactor 2, RaceRoom, Le Mans Ultimate, CarX Drift, City Car Driving, among others
• Expansion: Compatible with optional clutch pedal

Technical Specifications

• Model: PD LP
• Type: 2-pedal set (accelerator + brake)
• Connectivity: Wired USB
• Weight: 5.65 kg
• Dimensions: 360 × 326 × 259 mm
• Materials: Stainless steel, CNC aluminum, carbon fiber
• Operating Temperature: 10–40 ºC
• Humidity: 20–80%

Box Contents:

• Accelerator pedal ×1
• Brake pedal ×1
• Aluminum base ×1
• Carbon fiber footrest ×1
• Control box ×1
• Mounting accessories and tools

Feel Every Millimeter of the Asphalt

If you are looking for professional simracing pedals with advanced precision, full adjustability, and realistic sensations, the PXN Vector X are a sure bet. Designed to improve your consistency on track and take your level to the next step.
