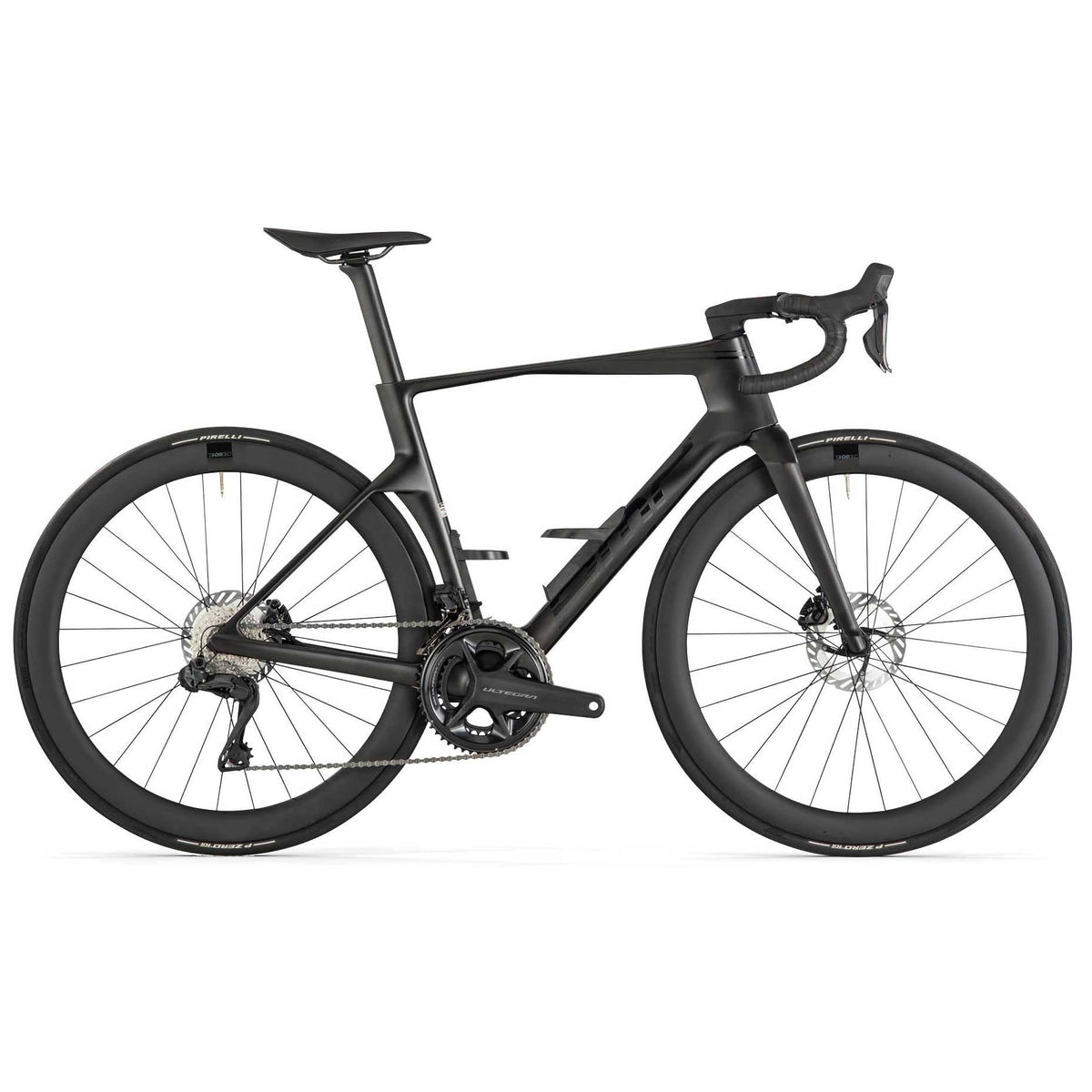

Forged on the slopes of the Swiss Alps. Hardened over the cobbles of Spring Classics. Perfected within the echelons of the Grand Tours. Developed in collaboration with Red Bull Advanced Technologies the Teammachine R isn’t just another race bike. With the Teammachine R 01 FOUR finished off with the Shimano Ultegra Di2 drivetrain including powermeter, CRD-501 Carbon Wheelset and BMC’s ICS2 Integrated Cockpit Design.

INNOVATION
Halo Fork
The ultrawide fork legs are unlike anything else seen in the peloton and help keep turbulent air, created by the front wheel, away from the frame.

ICS2 Integrated Cockpit Design
ICS2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.

Deep Bottom Bracket Area
We call it the "Mariana Bottom Bracket" because it's the deepest bottom bracket we have ever made on a road bike and this perfectly optimizes the surface area for cleaner airflow.

All-new seatpost
The new seatpost is slimmer, deeper, more compliant, and lighter than ever. With the new seatpost clamp mechanism now easier to access and maintain, including an integrated number plate holder making it the smartest way to get race-ready.

SPECIFICATIONS
Frameset
Frame: Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology, Stealth Cable Routing | Integrated Aerocore Bottle Cages | Stealth Dropout Design | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle
Fork: Teammachine R 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12x100mm Thru-Axle

Cockpit
Handlebar: BMC RCB 01 Carbon - Ergo Top Shape - Compact Bend
Stem: BMC ICS2 - Integrated Cockpit Design
Seatpost: Teammachine R 01 Premium Carbon Seatpost10mm Offset
Saddle: Fizik Argo Vento R3 (140mm)

Drivetrain
Gears: 2x12
Crankset: SHIMANO Ultegra FC-R8100 12spd 52-36T4iii Precision Power Meter (Single Sided)
Cassette: SHIMANO Ultegra CS-R8100 12spd 11-30T
Chain: SHIMANO Ultegra CN-M8100 12spd
Front Derailleur: SHIMANO Ultegra Di2 FD-R8150 12spd
Rear Derailleur: SHIMANO Ultegra Di2 RD-R8150 12spd
Shifters: SHIMANO Ultegra Di2 ST-R8170 12spd

Brakes
Brake Levers / Calipers: SHIMANO Ultegra BR-R8170
Rotors: SHIMANO RT-CL800 160 / 160 mm

Wheels
Rims: CRD-501 Carbon - Tubeless Ready - 50mm
Hubs (F/R): CRD-501
Tires: Pirelli P ZERO Race TLR 26mm
Tubeless Information: Tubeless Ready Rims / Tubeless Tires

Additional information
Tire Clearance: 30mm (Measured Width)
