Description

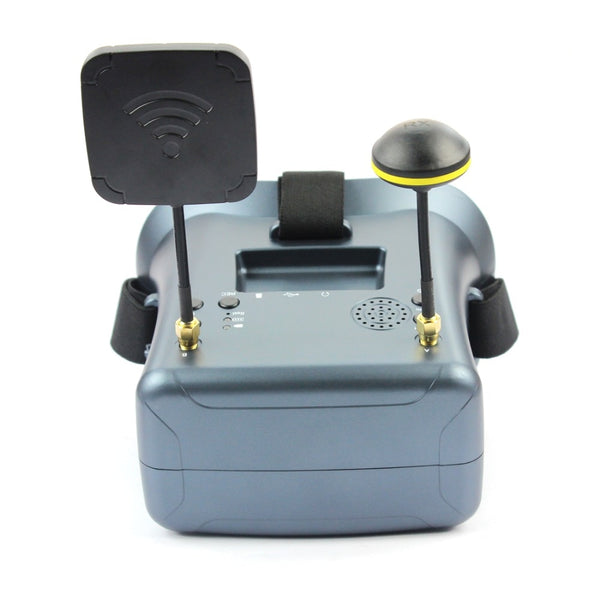

rc goggles 5.8G 40CH FPV Goggles 800*480 LS-008D 4.3inch Built-in Battery for RC – QWinOutNote: EU plug UK plug 3 options, choose the one you want, if any request, please leave message or contact me directly. Feature: With DVR, you can record videos anytime and anywhere; Low power consumption; Double antenna reception to make the signal more stable; Auto Searching, support a key search frequency; 4. 3 Inch 800*480 dot high brightness LCD screen; Built in super sensitiveness 5. 8GHz 40ch receiver, especially with RaceBand; Built in 3. 7V
Note: EU plug / UK plug 3 options, choose the one you want, if any request, please leave message or contact me directly.
Feature:
● With DVR, you can record videos anytime and anywhere;
● Low power consumption;
● Double antenna reception to make the signal more stable;
●Auto-Searching, support a key search frequency;
● 4.3 Inch 800*480 dot high brightness LCD screen;
● Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
● Built-in 3.7V/2000mAh high-capacity Li-ion polymer Battery;
● Universal USB charging interface;
● Real-time video return, Very low time-delay;
● Bilingual menu in support of Chinese and English;
● Support external video signal input;
● Support Audio signal output (You can connect headphones)
Specification:
|
Model |
|
||||||||
|
Name |
5.8G FPV Goggles |
||||||||
|
LCD Screen |
Screen size: 4.3 Inch |
||||||||
|
Resolution: 800*480 |
|||||||||
|
Display Ratio: 16:9 |
|||||||||
|
View Angle: 6 o'clock |
|||||||||
|
Brightness: 300cd/m⊃2; with high brightness backlight LED |
|||||||||
|
Video delay |
Video time-delay less than 20ms |
||||||||
|
Lens |
2.8X Fresnel Lens, 92% transparent rate no distort of light |
||||||||
|
Interface |
Antenna |
2 X RP-SMA male |
|||||||
|
USB |
To charge the battery |
||||||||
|
AV Jack |
External video signals input or internal Audio signal output |
||||||||
|
Card slot |
TF-Card, Support up to 32G(C10 recommend) |
||||||||
|
DVR |
REC size: VGA / D1 / HD Selectable |
||||||||
|
REC sound: ON / OFF Selectable |
|||||||||
|
REC time: OFF / 3min / 5min / 10min Selectable |
|||||||||
|
Frame rate: 30 Frames |
|||||||||
|
Compress format: MJPEG |
|||||||||
|
Record file format: AVI |
|||||||||
|
Languages |
English and Chinese |
||||||||
|
Power Supply |
Power adapter: DC5V/2A (USB interface) |
||||||||
|
Battery: 3.7V/2000mAh, DVR module ON: Each full charge revive around 2.5hr working time DVR module OFF: Each full charge revive around 3.5hr working time |
|||||||||
|
Power Consumption: * Normal mode: The device operating current of 400mA at 3.7V; * Record Mode : The device operating current of 620mA at 3.7V; * Built-in battery maximum charge current of 500mA; |
|||||||||
|
Wireless |
Frequency Table(MHz) |
||||||||
|
|
CH1 |
CH2 |
CH3 |
CH4 |
CH5 |
CH6 |
CH7 |
CH8 |
|
|
Band A |
5865 |
5845 |
5825 |
5805 |
5785 |
5765 |
5745 |
5725 |
|
|
Band B |
5733 |
5752 |
5771 |
5790 |
5809 |
5828 |
5847 |
5866 |
|
|
Band E |
5705 |
5685 |
5665 |
5645 |
5885 |
5905 |
5925 |
5945 |
|
|
Band F |
5740 |
5760 |
5780 |
5800 |
5820 |
5840 |
5860 |
5880 |
|
|
Band R |
5658 |
5695 |
5732 |
5769 |
5806 |
5843 |
5880 |
5917 |
|
|
Body |
Dimension: 155mm * 144mm * 113mm |
||||||||
|
Weight: 300g(with headband, not included antennas) |
|||||||||
* Note: Cannot record video input from AV port. *
Description:
① Key 1: Short press into MENU mode; Long press (More than 2 sec) for Power ON/OFF.
② Key 2: Short press for Auto-Searching; Long press (More than 1.5 sec) into AV mode.
③ Key 3: Short press to start or stop Recording.
④ Key 4: Short press for Band+ (Change bands A-B-E-F-R circularly).
⑤ Key 5: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).
⑥ Antenna port A: RP-SMA male.
⑦ Antenna port B: RP-SMA male.
⑧ AV Jack: In RF receiving mode can output Audio signal; In AV mode can enter the video signal.
⑨ Micro-USB Charging port: Supports DC5V only.
⑩ Card slot: Used for inserting memory card.
⑪ RESET: Power Reset.
⑫ Charging indicator: When is charging, the red light is on; When is full, the green light is on.
⑬ REC indicator: Show the different working states of the DVR module.
Menu Instructions:
In the normal mode, press Key 1 to enter the MENU mode.
In MENU mode:
Key 1: Scroll options bar.
Key 2: Auto-Searching.
Key 3: Invalid.
Key 4: Enter / Value +.
Key 5: Enter / Value -.
Playback Instructions:
In the menu mode, select the "DVR" option bar to enter the DVR mode.
In DVR mode:
Key 1: Return / Quit Playback mode.
Key 2: Delete current file.
Key 3: Play / Pause.
Key 4: Forward selection of video / Fast Forward (When video is playing).
Key 5: Backward selection of video / Fast Rewind (When video is playing).
AV port Instructions:
Dimension Diagram:
Not included antennas and headband.
Safety instruction:
1. Read the entire instruction manual to become familiar with the features of the product before operating.
2. Age Recommendation: Over 14 years old. Using any near eye displays on children under 14 can cause eye development problems. This is not a toy.
3. Please avoid wet or humid environments.
4. Please use standard USB charger, charging voltage can only be 5V.
5. Audio output and Video input cannot work at the same time.
