Description

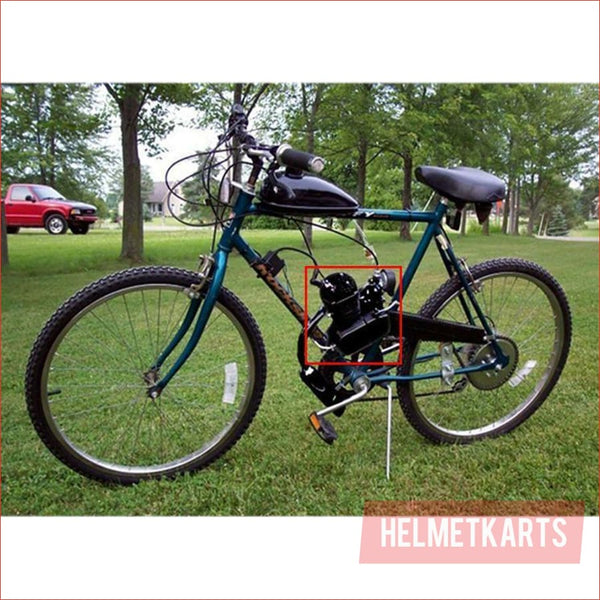

crossbike 80ccm 80cc Engine - 5.0HP - Engine, Small engine | Helmetkarts Australia Ltd PtyAbout this product The 80cc Engine 5. 0HP is a single cylinder, air cooled, 2 stroke engine designed for reliable performance. Featuring a crankcase scavenging system and an ignition mode of CDI, this engine delivers a maximum power of 5 horsepower at 6000 RPM. With a compression ratio of 7: 1 and a total rotational transmission ratio of 16: 1, this engine is engineered for maximum efficiency and power. The engine is equipped with both electric and
About this product
The 80cc Engine - 5.0HP is a single-cylinder, air-cooled, 2-stroke engine designed for reliable performance. Featuring a crankcase scavenging system and an ignition mode of CDI, this engine delivers a maximum power of 5 horsepower at 6000 RPM. With a compression ratio of 7:1 and a total rotational transmission ratio of 16:1, this engine is engineered for maximum efficiency and power.
The engine is equipped with both electric and pull start options and has a gas tank capacity of 2 litres. It is compatible with unleaded gas mixed with 2-stroke synthetic oil. The hybrid ratio is within 1000 km at 20:1 and above 1000 km at 25:1. The engine supports a maximum speed of up to 50 km/h.
The dry clutch system, air cooling, and sprocket shifting way ensure smooth operation. The spark plug model is 4135, and the complete kit includes various essential components like the spark plug, cylinder cover, screws, and more. The net weight is 13 kg and 9 kg for versions A and B, respectively, with gross weights of 14 kg and 10 kg each. The box dimensions are 39 x 29 x 29 cm for both options.
This engine comes in two colour options: black and silver, making it versatile for different applications. Ideal for those needing a robust small engine for various vehicles.
Specifications
| Specification | Detail |
|---|---|
| Engine Type | Single cylinder, air-cooled, crankcase scavenging |
| Ignition Mode | CDI |
| Max. Power | 5HP/6000r/min |
| Compression Ratio | 7:1 |
| Transmission Ratio | 16:1 |
| Starting | Electric Start and Pull Start |
| Gas Tank Capacity | 2L |
| Spark Plug Model | 4135 |
| Clutch Type | Dry clutch |
| Cooling | Air-cooling |
| Shifting Way | Sprocket |
| Max. Speed | Up to 50km/h |
| Displacement | 80cc |
| Fuel Type | Unleaded gas mixed with 2 stroke synthetic oil |
| Hybrid Ratio | Within 1000km 20:1; above 1000km 25:1 |
| Net Weight | A(13kg); B(9KG) |
| Gross Weight | A(14kg); B(10KG) |
| Box Dimensions | 39x29x29CM |
| Complete Kit | Spark Plug, Cylinder Cover, Screws, Cylinder, Cylinder Washer, Cap Nut, Piston, Piston Ring, Piston Clip, Coils, Clutch Base and more |
| Colour | Black / Silver |
Features & Benefits
- High-performance 5HP power output for enhanced efficiency
- Dual starting options: electric and pull start for flexibility
- Compact 80cc design suitable for small vehicles
- Quality components included in the complete kit
- Available in stylish black or silver colours
