Description

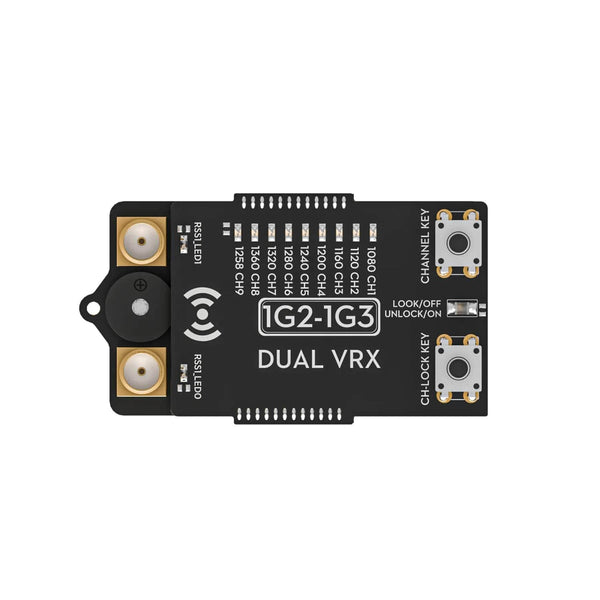

analog receiver for dji goggles Flywoo VRX 1G2-1G3 Dual 9CH 1.2/1.3GHz Analog Goggle Receiver Module (Flywoo 1G2 1G3 VRX boasts a wide 9CH range from 1080 1360MHz and two Y shaped 1. 2G antennas for stable signal connectivity. Alongside, the included Notch Filter (868 915 MHz) which filters out other similar frequencies for clear FPV visuals. Compatible with DJI V2 goggles, allowing for a high quality video feed and an immersive flying experience. Check out our FPV Wing Gear, as well as the rest of our Flywoo selection! Features Wide Receiving
Flywoo 1G2-1G3 VRX boasts a wide 9CH range from 1080-1360MHz and two Y-shaped 1.2G antennas for stable signal connectivity. Alongside, the included Notch Filter (868/915 MHz) which filters out other similar frequencies for clear FPV visuals. Compatible with DJI V2 goggles, allowing for a high-quality video feed and an immersive flying experience.
Check out our FPV Wing Gear, as well as the rest of our Flywoo selection!
Features
- Wide Receiving Frequency Range: The FLYWOO1.2/1.3GHz Dual VRX Video Receiver has a receiving frequency range of 9CH, covering a wide range from 1080MHz to 1360MHz.
- Dual Antenna Design: With two Y-shaped 1.2G antennas, the Flywoo receiver module ensures stable and reliable signal reception for an uninterrupted FPV experience.
- Notch Filter Included: The FLYWOO 1.2GHz VRX Notch Filter (868/915 MHz) included in the box helps eliminate interference from other devices operating at similar frequencies, ensuring a clear video feed.
- Compatible with DJI V2 goggles: The FLYWOO 1.2/1.3GHz Dual VRX Video Receiver is compatible with DJI V2 goggles, allowing for a high-quality video feed and an immersive flying experience.
Specifications
-
Receiving Frequency: 9CH (1080MHz to 1360MHz)
-
RX Sensitivity: -95dBm
-
Dual Input: 7-26V/2-6S
-
Button Control: Lock and Select Frequency
-
Channel LED: 9CH LED
-
RSSI LEDs: RSSI0/RSSI1
-
Regulator Output: 5V 2A
-
Current Consumption: 0.4A @5V/0.2A @12V
-
Video Format: NTSC or PAL
-
Video Output Impedance: 75Ω, Typ.
-
Audio Subcarrier Frequency: 6.5MHz & 6.0MHz
-
ANT. Input Impedance: 50Ω, Typ.
-
RF Connector: SMA
Product User Guide
- Press and hold the LOCK button for 3 seconds to unlock the channel. The UNLOCK LED will light up and the buzzer will sound once.
- Press the CHANNEL button to select the frequency. The LED will light up and the buzzer will sound once.
- The RSSI0/RSSI1 LEDs respectively display the signal strength of the two receiver modules.
- The new frequency will be saved if no button action is taken within 3 seconds.
Includes
- 1x Flywoo VRX 1G2-1G3 Dual 9CH 1.2/1.3GHz Analog Goggle Receiver Module (Compatible with DJI Goggles V2)
- 2x Flywoo 1.2GHz VRX Notch Filter (868/915 MHz)
- 2x Flywoo 1.2GHz Antennas
- 1x Power Cable
- 1x Video Cable
