*Clearance Sale Item: May be new Sealed Box, Open Box or Display Model. Item is considered new and comes with full manufacture warranty. All Clearance Sale Items are subject to a 7-day return policy for manufacturer defects.

SIMPLIFIES YOUR SETUP

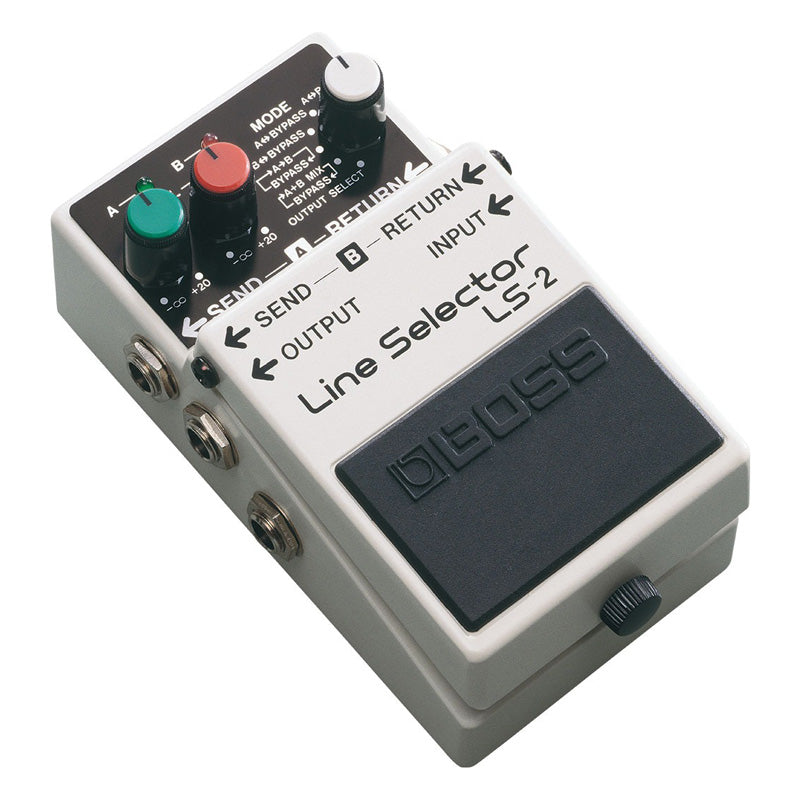

The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.

FEATURES

• Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
• Provides two line loops with Level control and six looping modes
• Can supply power to several BOSS compact pedals when used with an AC adaptor
• The ideal power supply and master switching unit for multiple effects setups
• BOSS 5-year warranty

SPECIFICATIONS

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohms
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls: MODE selector switch, LEVEL knobs A/B, Pedal switch
• Indicator: Line indicator A/B (Used for indication of check battery)
• Connectors: INPUT jack: 1/4-inch phone type, SEND jacks A/B: 1/4-inch phone type, RETURN jacks A/B: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DC IN/OUT jack
• Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
• Current Draw: 25 mA
• Expected battery life under continuous use: Carbon: Approx. 14 hours, Alkaline: Approx. 30.5 hours - * These figures will vary depending on the actual conditions of use.
• Accessories: Owner's manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Carbon-zinc battery (9 V, 6F22)
• Options (sold separately): AC adaptor: PSA series

SIZE AND WEIGHT

• Width: 73 mm, 2-7/8 inches
• Depth: 129 mm, 5-1/8 inches
• Height: 59 mm, 2-3/8 inches
• Weight (including battery): 410 g, 15 oz.
