grow tent ventilation setup diagram Secret Jardin Extraction FanThere are two sizes Secret Jardin fan, one does150m3 h max and the other does 350m3 h max. Use the Ducting Flange system to convert the flange size. It is intended to be used in combination with the Secret Jardin Carbon Activated Carbon Filters. This fan runs minimum at a gentle breeze of 150 m h to a gusty 350 m h. Need something smaller? Check out the DF16150 Extraction fan. Why Choose It? Adaptable: Whether your garden is just a cozy corner or a

There are two sizes Secret Jardin fan, one does150m3/h max and the other does 350m3/h max. Use the Ducting Flange system to convert the flange size. It is intended to be used in combination with the Secret Jardin Carbon Activated Carbon Filters.

This fan runs minimum at a gentle breeze of 150 m³/h to a gusty 350 m³/h. Need something smaller? Check out the DF16150 Extraction fan.

Why Choose It?

• Adaptable: Whether your garden is just a cozy corner or a sprawling green haven, this fan adjusts its flow from 150 to 350 m³/h. Your plants will thank you!
• Whisper-Quiet: It hums along so quietly at 36 dB, you might forget it's there—no more noisy interruptions.
• Smart & Safe: With its dual temperature sensors, the DF16 keeps things cool without breaking a sweat. Plus, its flame-retardant materials mean you can rest easy.
• Energy-Efficient: At just 35W max, this fan's a real penny-pincher, keeping your bills low and your spirits high.
• Installation Magic: Clicks into place on the Ducting Flange system in a blink. No fuss, no muss.

How To Use it?

1. Snap It On: Find the Ducting Flange system in your grow space and click the DF16 right in. No tools, no headaches.
2. Set & Forget: Choose your desired temperature and let the DF16 do its thing, automatically adjusting its speed to keep your air just right.
3. Enjoy the Breeze: Kick back and let the DF16 maintain the perfect climate for your plants. It's all the breeze with none of the sneeze.

Ideal for indoor gardeners and hydroponic enthusiasts who value silence, efficiency, and simplicity, the DF16 Extractor offers a breath of fresh air, quite literally, making it the go-to choice for a happier, healthier indoor garden

Setting the controllers:

• 1. Select your desired set temperature (TEMP°). The EC fan regulates the temperature with a deviation of +/- 2°C.
• 2. select the minimum exhaust air speed (EXT. MIN). So that the air can be exhausted even at low temperatures.
• 3. select the maximum exhaust air speed (EXT. MAX). Depending on the grow surface (see technical data).

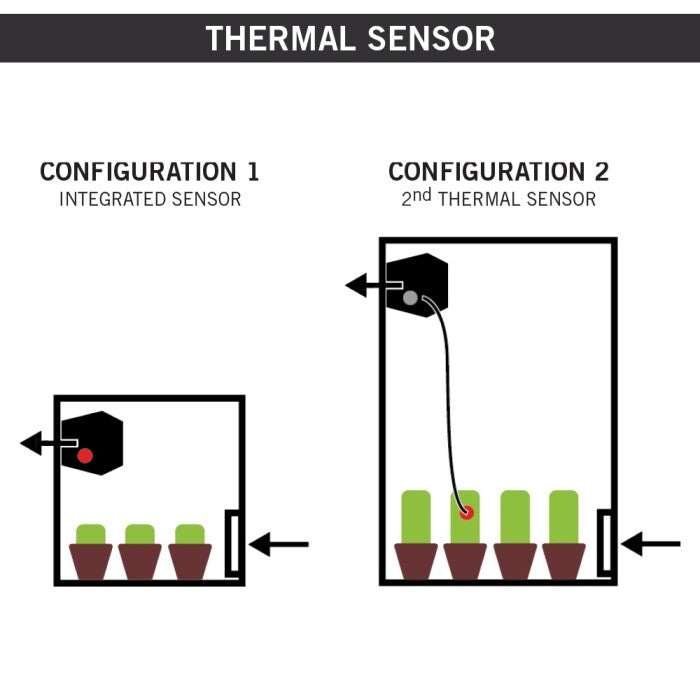

Integrated and external temperature sensor

If the 2nd thermal sensor (external) is connected, the integrated sensor is switched off. So if you use the integrated temperature sensor, the EC fan runs at a minimum speed of 5%.

Volume test:
The measurement was taken 70cm in front of the tent without silencer.

• max. stage 150m3/h: 36 dB
• max. stage 250m3/h: 54 dB
• max. stage 350m3/h: 61 dB

Recommendation:

• level 150m3/h for a grow tent up to 60x60x160cm, recommended Carbon Filter DF16150.
• level 250m3/h for a grow tent up to 100x100x200cm, recommended Carbon Filter DF16250.
• level 350m3/h for a grow tent up to 120x120x200cm, recommended Carbon Filter DF16350.

Details:

• Compatible with all Secret Jardin grow tents
• 3-stage EC fan with 150/250/350 m3/h capacity
• Temperature control function and 2 heat sensors (integrated and external)
• Assembly without tools within seconds
• Connection to different flange sizes possible

Technical data:

• 3 speed: 150/250/350 m3/h
• Consumption: 35W
• Current: 1.5A
• Voltage: 110-220 V
• Frequency: 50/60 Hz
• Ambient temp.: min. 0°C/max. 40°C
• Dimensions (LxWxH): 25x25x21cm
• Protection class: IP54
• Length of power cable: 60cm
• Length of 2nd sensor cable: 240cm
• Weight: 1,5kg

Included:

• Adapator DF16 Ring
• 2nd Thermal Sensor (external)
• 24V Deported Power Supply, EU, UK, US Adaptor

An activated carbon filter is not included and must be ordered separately.
