Description

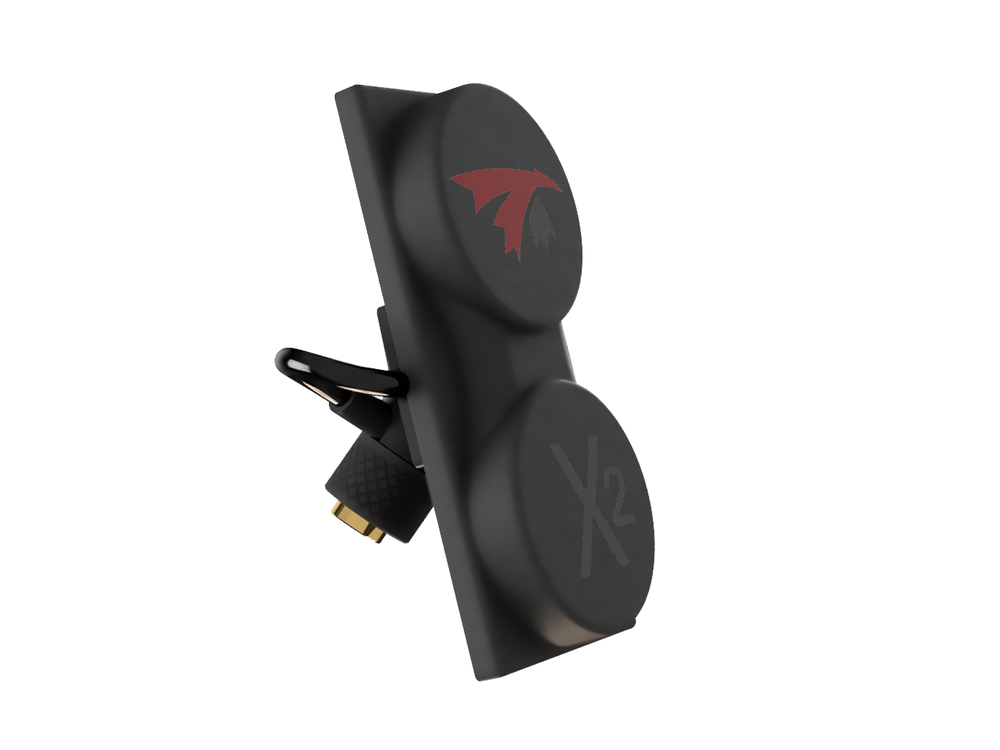

goggles x antenna TrueRC X²-Air 5.8 MK II Pair For Walksnail Goggles XOur high efficiency X AIR MK II with direct angled RP SMA connectors for installing on the Walksnail Avatar HD Goggles X. Simply screw on the custom angled RP SMA connectors on the top ports of the goggles. Great 13dBic gain combined with a healthy flyable beam width of 150deg, yields an amazing long range performance. Fill the remaining ports with singularity stubby and you got the antennas full house. Custom made RP SMA connectors, direct fit for
Our high-efficiency X²-AIR MK II with direct angled RP-SMA connectors for installing on the Walksnail Avatar HD Goggles X. Simply screw on the custom angled RP-SMA connectors on the top ports of the goggles. Great 13dBic gain combined with a healthy flyable beam width of 150deg, yields an amazing long-range performance. Fill the remaining ports with singularity stubby and you got the antennas full house.
Custom made RP-SMA connectors, direct fit for your goggles
As with all other components of X-AIR antennas, the custom RP-SMA connector is made to fit your Walksnail Avatar HD Goggles X without adapter and make sure they end up facing forward with little uptilt for good measure.
Pair them with our ever popular singularity stubby
A pair of singularity stubby antennas can be included as a combo for the ultimate in performances and convenience!
Features:
- Circularly Polarized
- Mount direct on Walksnail Avatar or Fat Shark dominator
- Sector type beam shape (widest on horizontal)
- High 13 dBic for unsurpassed long range and signal penetration
- Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
- Super wide 150 degree Sector type beam (widest on horizontal)
- Custom RP-SMA connectors with compound angle to have the X²-air antenna face forward
Specifications:
- Bandwidth: 5.1GHz-7.0GHz
- Gain: 13 dBic
- Polarization: LHCP or RHCP
- Beam-width Horizontal*: 150deg
- Beam-width Vertical*: 62deg
- Hor. beam @-3dB**: 75deg.
- Vert. beam @-3dB**: 34deg.
- Connector: Custom knurled RP-SMA
- Dimension: 72mm x 34mm x 34mm
*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.
Includes:
2x TrueRC X²-Air 5.8 MK II Antennas For Walksnail Goggles X
2x TrueRC Singularity Stubby (Optional)
