barefoot pedals bike MK0 DEL Gravel Race Clipless Pedal – Wolf Tooth Components

barefoot pedals bike MK0 DEL Gravel Race Clipless Pedal – Wolf Tooth ComponentsWolf Tooth MK0 DEL Gravel Race Clipless Pedals are the lightest full featured SPD compatible pedals with a total weight of 174g. Extensive CNC machining is used to achieve the lowest possible weight while still maintaining excellent strength. They use a one sided design for peak speed and consistent performance in gravel races. They feature a large platform for maximum power transfer and a connected feel that approaches that of a road pedal. The one

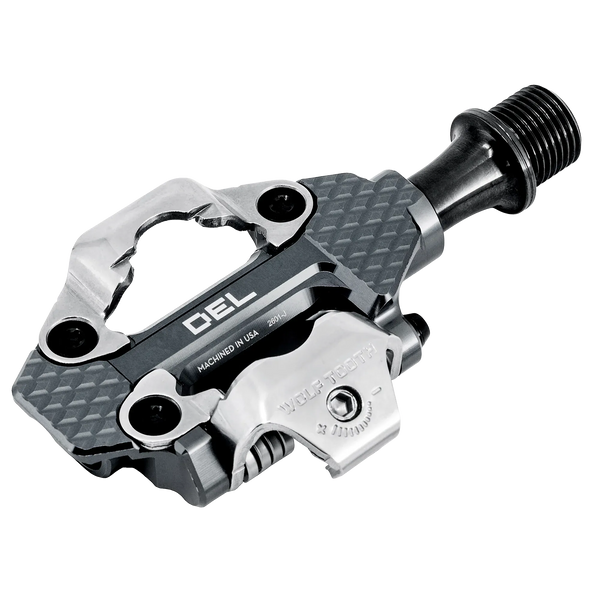

Wolf Tooth MK0 DEL Gravel Race Clipless Pedals are the lightest full-featured SPD-compatible pedals with a total weight of 174g. Extensive CNC machining is used to achieve the lowest possible weight while still maintaining excellent strength. They use a one-sided design for peak speed and consistent performance in gravel races. They feature a large platform for maximum power transfer and a connected feel that approaches that of a road pedal. The one-sided design features an open center between the binding cages for mud shedding. It has all the advantages of a road pedal, but with a shoe and cleat system that works in all conditions.

The MK0 DEL Gravel Race Clipless Pedals have an adjustable Q factor of 4 mm increments. Inside the pedal is a stainless steel axle, three bearings, and two spacer. The spacers and bearings can be rearranged for Q factors of 51, 55, or 59 mm. This is simple enough for anyone to do at home. A spacer kit including four 2 mm spacers is available for purchase to further fine tune Q Factor adjustment. Like most Wolf Tooth components and accessories, replacement parts and service guides are available via Wolf Tooth Right to Repair.

• Thinner than the competition at 14.5 mm (compared to HT M2T at 17.5 mm, Shimano XTR 9200 at 16.5 mm, Xpedo MF8 at 17 mm and Look X-One G Ti at 18 mm)

• Lighter weight than the competition at 174 g per set(compared to HT M2T at 260 g, Shimano XTR 9200 at 316 g, Xpedo MF8 at 220 g, and Look X-One G Ti at 240 g)

• Larger platform area for power transfer than the competition at 559 mm²  (compared to HT M2T at 357 mm², Shimano XTR 9200 at 144 mm² and Xpedo MF8 at 46 mm²)

• Adjustable Q factor options of 51, 55, and 59 mm (53 and 57 mm also available via spacer kit sold separately). Pedals ship in 55 mm position.

• 5 degrees float | 12 degrees release
• SPD compatible
• Proven axle and bearing design with three cartridge bearings and one igus bushing for smooth operation and long life
• Designed, tested, and machined at Wolf Tooth in Minnesota, USA

Recommended

• Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.

• NOTE: Using any titanium axle pedal with a titanium crankset will increase the risk of the pedal axle becoming permanently stuck in the crank arm. Always use anti-seize but be aware that this will not completely eliminate the risk.

Compatibility

• Compatible with SPD cleats; Wolf Tooth cleats included
• Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kids' bikes and vintage bikes may have smaller incompatible threads.

Tech Specs

Weight:  174 g
Thickness:  14.5 mm
Platform Area:  559 mm²

Max Rider Weight:  200 lbs / 90kg

Material:
Body: 6061-T6 aluminum CNC machined
Axle: titanium with diamond-like carbon (DLC) coating
Binding Cage: stainless steel
Hardware: PVD-coated titanium
Cleats: stainless steel

Included:  pedals, cleats with shims and bolts

Patent Pending

Machined in the USA

Patent and trademark information
