Description

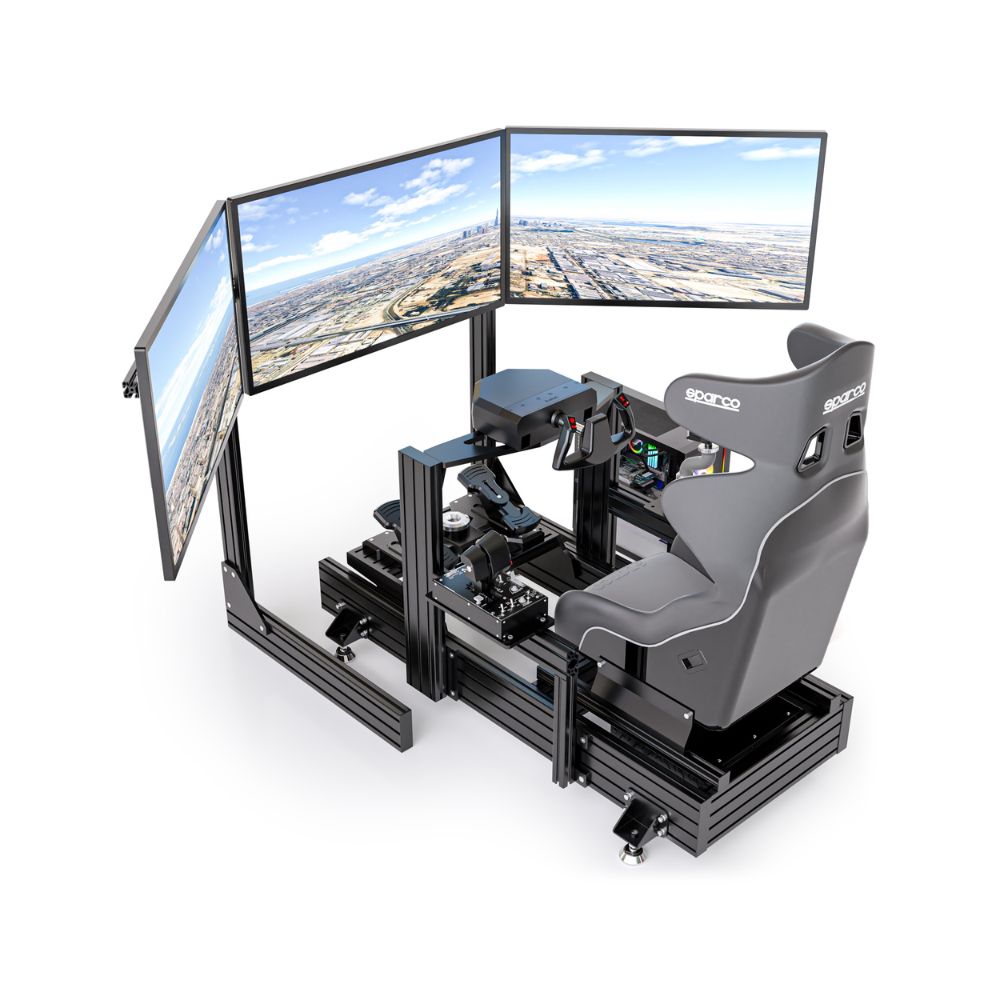

best flight sim gear Shop Gamer Gear Direct Motion Flight Simulator PackageGamer Gear Direct motion flight simulator package This full motion flight sim package includes everything you need to start flying your favourite titles straight out of the box Microsoft Flight Simulator, X Plane, Elite Dangerous, and Ace Combat. At the heart is the Sigma Integrale DK2+ motion system, delivering immersive motion and haptics for a next level virtual flight experience. We ship all components direct to you for easy DIY assembly Built for
Gamer Gear Direct motion flight simulator package
This full-motion flight sim package includes everything you need to start flying your favourite titles straight out of the box — Microsoft Flight Simulator, X-Plane, Elite Dangerous, and Ace Combat.
At the heart is the Sigma Integrale DK2+ motion system, delivering immersive motion and haptics for a next-level virtual flight experience.
We ship all components direct to you for easy DIY assembly
Built for quality and longevity, it features trusted brands like Honeycomb Aeronauticals, Sigma Integrale, Trak Racer, and MOZA — and it's fully upgradeable.
High-end motion package
Fully customisable
Ready to assemble
Dedicated support
Key inclusions
Trak Racer TR160 flight simulator + seat
MOZA AY210 yoke bundle + AB6 bundle
MOZA MTQ throttle panel
Honeycomb Charlie rudder pedals
Trak Racer monitor stand + AOC 49" monitor
Sigma Integrale DK2+ motion system
Custom racing sim mat
Edifier G2000 speakers (or similar)
The perfect motion flight simulator for virtual pilots
If you're ready to step up into a high-end motion flight simulator, this rig’s for you.
This package includes everything you need to start flying your favourite titles like Microsoft Flight Simulator, X-Plane, and more.
We ship everything straight to your door — if you can twist an Allen key and power on a PC, you’re all set.
Need a hand? We’re just a call, email, or live chat away.
Tech support to keep everything running smoothly
Tech issues can ruin your virtual flying, but fast support keeps everything running smoothly.
With dedicated assistance from the Gamer Gear Direct team, expert help is always available when you need it and just a phone call or email away.
From troubleshooting hardware to optimising performance, every question gets answered by our dedicated and knowledgeable team.
We’re here to help you build your dream flight simulator
Our flight simulator experts make it easy to find, or fully customise the perfect flight sim setup. With Gamer Gear Direct in your corner you get:
- Personalised recommendations based on your goals, experience level, and budget
- Upgrade options: From yokes to accessory mounts to upgraded seats and more. Use the options above or ask us for advice
- Expert advice on gear pairing for your yoke, rudder pedals, HOTAS, and motion system
- A dedicated sim specialist to help you fine-tune your setup now and in the future
Call us on (03) 9961 0240, chat live with our team, or email [email protected]. We’ll help you design a flight simulator package that’s built just for you.
Test fly our simulator packages in Dandenong South, Melbourne
Want to get a sense of what your flight simulator package will look and feel like?
Book an appointment and visit our Dandenong South showroom to get hands-on with our flight sim setups.
A sim specialist will be on hand to guide you through our various flight sims and answer any questions you may have. It’s the best way to discover why more flight simulation enthusiasts choose Gamer Gear Direct.
Frequently asked questions
What is included in the motion flight simulator package?
The motion flight simulator package is packed with high-end components, including the Trak Racer TR160 flight cockpit, Trak Racer flight seat, Sigma Integrale DK2+ motion system, Trak Racer monitor stand and PC shelf, MOZA AY210 yoke bundle, MOZA AB6 flightstick bundle, AOC 49-inch ultra wide monitor, Gamer Gear Direct floor mat and Edifier G2000 gaming speakers, making it a complete setup.
How does the Sigma Integrale DK2+ motion system enhance the experience?
The DK2+ motion system adds an incredible level of realism by simulating the physical sensations of flying. With advanced haptic feedback and 3DoF motion, you’ll feel every twist, turn, and bump in your flight, taking immersion to new heights.
Is the package suitable for beginners?
While the motion flight simulator package is designed for advanced sim pilots, beginners eager to dive into high-end flight simulation can still enjoy it. The intuitive design and support we offer make it accessible for anyone ready to learn.
Can I upgrade components over time?
Yes, the package is built with longevity in mind. All components are modular and can be upgraded as your skills and preferences evolve, ensuring your setup remains cutting-edge.
What flight simulation software is this package compatible with?
The motion flight simulator package is fully compatible with major titles like Microsoft Flight Simulator, X-Plane, Elite Dangerous, and Ace Combat, delivering a seamless experience no matter your favourite sim.
Is the system difficult to assemble?
If you’re handy with an Allen key and can follow simple instructions, assembly is straightforward. We provide clear guidelines, and our team is always available to assist if needed.
How does the MOZA flightstick enhance the experience?
The MOZA flightstick, paired with the AB6 force feedback base, provides lifelike control with dual servo motors and advanced MCLS technology. You’ll feel every input with pinpoint accuracy, making your flights incredibly realistic.
Are the Honeycomb rudder pedals adjustable?
Yes, the Honeycomb Charlie rudder pedals are fully customizable. You can adjust the pedal angle, width, and tension to suit your comfort and control preferences, ensuring a tailored flying experience.
What support is included with the package?
The package comes with a warranty on all components and access to our tech support team. Whether you need help with setup, troubleshooting, or customization, we’re here to ensure a smooth experience.
Specifications
Trak Racer TR160 Flight Cockpit
Frame/Chassis
Constructed from high quality extruded aluminium in different profiles sizes including 10-Slot 160 x 40mm, 8-Slot 120 x 40mm and 6-Slot 80 x 40mm
660mm wide and 1440mm long for a firm stance when racing
Gross weight including all brackets and fixtures: 63kg plus wheel mount
Low ground clearance with hard wood rubber floor protectors
Finished in black anodized high-quality aluminium
Flex-Free Adjustable Wheel/Yoke Deck
Full adjustment including angle and sliding function
Choose from the standard, front mount or side mount wheel deck
Pre-drilled mounting points for all major brand wheels
Adjustable Rudder Pedal Mount
Unique bracket design allows you to position the pedal plate above, or below the top of the chassis
Hassle free angle adjustment with the tool-free screw
Fully adjustable bracket for both angle, height and slide
Thick, no-flex carbon steel construction
Pre-drilled mounting points for all major brand pedals
Accessory Mounts
The slider mount allows you to fine-tune the mount to the most ergonomic position for you
Angle adjustment enables you to face the shifter mount inwards, flat or outwards for more customised adjustability
Pre-drilled mounting points for all major brand shifters including Heusinkveld, DSD, Thrustmaster, Fanatec and more
Fibreglass Race Seat
Premium race-ready high-grade seat with hard back
Choose from GT, recline or rally style racing seat
Adjustable driving position seat
Ergonomically designed for extended periods of use
High density foam construction
Weight restrictions: Up to 160kg (352 lbs)
Suggested waist size: GT - under 38 inches, Rally - up to 42 inches
Sigma Integrale DK2+ Motion System
Contents
mono-block, machined billet actuators with 2” (50 mm) travel
powerful, responsive and compact American Teknic servo motors
maximum weight capacity (chassis and driver): 363 kg
billet-machined floating feet with large rubber pads
aluminium t-slot mounting hardware compatible with 25 to 45 series profiles
single controller box (115v/240V compatible) with power and network cables
two sets of 1m and 2m data and power cables from the controller to actuators
Sigma’s motion algorithms & simulation software
automatic Over-the-Air controller firmware updates
Actuators
100% designed, manufactured, assembled and tested in California, USA
Premium THK ball screw for smooth performance and durability
Machined billet aluminium body to ensure concentricity and accuracy
2″ (50mm) in piston diameter for large side-loading capability
T-slot aluminium extrusion friendly
10 lbs. each (4.5 kg) with the DK2 motor
Environmentally friendly tumbled finis
Latency
PC side (Windows 10/11)
Game physics engine @ 333 Hz: 3 ms
Windows OS response: 1 ms average
Sigma 10-layers algorithm: 1 ms
Send target positions via Ethernet: 0.3 ms
Controller side (Real-time OS in ARM)
Response to new position targets: < 1 microseconds
Motion Algorithm for smooth motion: Average: 25 ms, Range: 0 to 50 ms
Send motion data to 1st micro-controller at 1000 Hz: 1 ms
Controller side (2 low-latency micro-controllers)
Send motion data from 1st microcontroller to 2nd: 0.1 ms
Digital pulse generation: 0.002 ms
Electrical connection from 2nd microcontroller to ClearPath motor
3V to 5V conversion: 2 ms
ClearPath servo motor
Digital pulse signal to actual motion: 1 ms
Technical
ClearPath Integrated Servo Motor CPM-SDSK-2331S-RLN
Rated (RMS) Torque = 124 oz-in (0.9 Nm)
Peak Torque = 620 oz-in (4.4 Nm)
Max Speed = 2,520 rpm
Total Weight Capacity (for optimal performance), including fully-loaded simulator with driver: 363 kg
Optically isolated, current-based I/O system (EMI free)
Average system draw at 110V is about 0.290 KW (Peak 1600VA)
In-house manufactured actuators | 3D Model: Available Upon Request
2” (50mm) actuator travel
speeds of 8.4"/s @ 2,520 rpm
5/8” diameter, USA ball screw and nut
2” (50mm) diameter piston
Mono-block machined billet aluminium body
All American made components
Motion Controller | 3D Model: Available Upon Request
ClearPath IPC-5 Intelligent Power Supply
Input voltage 95-125/190-250 VAC; 50-60Hz
Operates at 600 Watt max, which is roughly 5.5A @ 110VAC, so about 2.6A at 230VAC
Real-time and remote motion control via default browser or phone/tablet
Signal processor with amplifier
Embedded microcontrollers
Shielded Molex connectors
15" wide, 9.25" deep and 3" tall
Sigma's Software and Algorithms
Motion Integrity™ architecture to provide ultra-responsive, precise and accurate motion control
Dynamic scaling algorithm to best represent all layers in the available actuator travel
Organic and natural feeling Velocity Trap™ algorithm
Smooth integration of the 10 motion layers
Real-time remote control interface
Custom Motion Profiles
Mounting hardware
Machined billet mounting bracket
T-slot aluminium extrusion (80/20) friendly
Machined billet floating feet with mounting capability
Supported Racing Titles
Assetto Corsa
Assetto Corsa Competizione
Automobilista 2
American Truck Simulator
BeamNG.drive
DiRT Rally 2.0
EA Sports WRC
Euro Truck Simulator 2
F1 2021
F1 2022
F1 2023
Forza Motorsport
Forza Horizon 4
Forza Horizon 5
iRacing
Kart Kraft
Le Mans Ultimate
Project CARS 2
Project CARS 3
RaceRoom Racing Experience
rFactor 2
Richard Burns Rally
WRC Generations
Supported Flight Titles
X-Plane 11
X-Plane 12
DCS World
Microsoft Flight Simulator 2020
Trak Racer Single Monitor Stand
DIMENSIONS
Height: 1300mm
Width: 1200mm
Depth: 600mm
INCLUDED
Trak Racer 80mm x 40mm Aluminium Frame and fixing screws/nuts
VESA Mounting Plate and fixing screws/nuts and VESA Extension Brackets
OPTIONAL: Triple Monitor Add-on Arms or Quad/Second Monitor Add-On
Trak Racer PC Shelf
Shipping Weight: 6.0000kg
Shipping Width: 0.390m
Shipping Height: 0.130m
Shipping Length: 0.610m
MOZA AY210 Yoke Bundle
MOZA AY210 Yoke Base
Dimensions
243 × 403 × 216 mm
Housing Material
Aluminum alloy
Weight
8.0 kg
Motors
Dual high-performance servo motors
Max Pitch Force
210N
Sustained Roll Torque
9 Nm
Travel Distance
150mm
Compatible Yokes
MOZA Yoke Series
Power
216W
Voltage
110~220V AC → 36V DC
Chip Precision
15-bit magnetic encoder
USB Refresh Rate
1000Hz
Mounting Options
Desktop clamp (optional), suspended desktop clamp (optional), direct mounting on a simulator cockpit
Connection Ports
Power, USB, throttle, rudder pedals, panel, etc.
Emergency Stop Switch
Optional
Intelligent Telemetry Force Feedback
Supported (no plug-in required)
Native Force Feedback
Supported
Platform Support
PC
MOZA MFY Yoke
Dimensions
142.5 × 202 × 313 mm
Case Material
Composite materials
Quick Release Material
Aluminum alloy
Button Cap Material
ABS plastic
Weight
1.3 kg
8-Way Switches
2
Hall Effect Joysticks
2
LB/RB Buttons
2
Triggers
2
Total Signal Outputs
Supports up to 34
Honeycomb Charlie Rudder Pedals
System Compatibility:
PC, MAC, Xbox (only in addition to Alpha XPC & Xbox Hub)
Connectivity:
USB-C to USB-A (Cable included)
Software Compatibility:
X-Plane 11, Prepar3D, Microsoft Flight Simulator
Dimensions (length x height x width):
47x 17x 50cm
18.5x 6.69x 19.68 inch
Warranty:
2-year limited warranty
MOZA AB6 Force Feedback Base
Dimensions: 188*123*163 mm
Housing Material: Aluminum alloy
Dust Bag Material: Microfiber leather
Weight: 2.95KG
Motors: Dual high-performance servo motors
Roll Axis Continuous Torque: 4.4N·m
Peak Combined Torque: 6N·m
Travel Range: ±20°
Compatible Sticks: All MOZA flight sticks
Power: 72W
Voltage Input: 110~220V AC —>12V DC
Game Resolution: 0-65535
USB Polling Rate: 1000Hz
Mounting Options: Desktop clamp (included), Base Mount Adapter (sold separately), direct hard mount
Emergency Stop Switch: Optional
Smart Telemetry-Based Force Feedback: Supported (no plugin required)
Native Force Feedback Support: √
Platform: PC
Included Accessories: Power supply, power cable, data cable, toolkit, user manual, stickers
MOZA MHG Flight Stick
Dimensions: 142.5*202*313mm
Casing Material: Carbon fiber reinforced composite
Connector Material: Metal
Button Cap Material: ABS plastic
Weight: 395g
5-Way Switches: 4
Hall Effect Mini-Stick: 1
Trigger Stages: 2
Assignable Outputs: 25
Included Accessories: User manual, toolkit
AOC 49-inch Premium Ultra Wide Gaming Monitor
Model name AG493UCX2
EAN 697 398523 053 0
Panel 49" (VA / 1800R)
Pixel Pitch (mm) 0.2331 (H) x 0.2331 (V)
Effective Viewing Area (mm) 1191.936 (H) × 335.232 (V)
Brightness (typical) 550 cd/m² (Typical)
Contrast Ratio 3000 : 1 (Typical) 80 Million : 1 (DCR)
Response Time 4ms (OD) / 1ms (MPRT)
Viewing Angle 178° (H) / 178° (V) (CR > 10)
Colour Gamut NTSC 100% (CIE1976) / sRGB 121% (CIE1931) / DCI-P3 91% (CIE1976)
Colour Accuracy -
Optimum Resolution 5120 × 1440 @ 165Hz – DisplayPort1.4[1]; 5120 × 1440 @ 75Hz – HDMI2.0; 5120 × 1440 @ 120Hz – USB-C[2]
Display Colours 16.7 Million
Signal Input HDMI 2.0 (HDR) x 3, DisplayPort 1.4 (HDR) x 1, USB-C (DP Alt)× 1
HDCP Version HDMI: 2.2, DisplayPort: 2.2
USB Hub USB 3.2 Gen1 x 3
Power Supply 100 - 240V ~ 3A, 50 / 60Hz
Power Consumption (typical) 68W
Speakers 5W x 2
Line in & Earphone Earphone x 1
Wall-Mount 100mm x 100mm
Adjustable Stand Height: 100mm, Swivel: -15.5° ~ 15.5°, Tilt: -5° ~ 15°
Product without Stand (mm) 369.4 (H) × 1194.4 (W) × 153.24 (D)
Product with Stand (mm) 467.6~567.6 (H) × 1194.4 (W) × 308.0 (D)
Product without Stand (kg) 10.9
Product with Stand (kg) 14.4
Cabinet Color Black & Grey
Regulatory Approvals BSMI / CE / CB / FCC
Edifier G2000 Gaming Speakers
BASS UNIT
2 3/4 inch
MAXIMUM POWER
16W+16W
FREQUENCY RESPONSE
R/L: 98Hz-20KHz
NOISE LEVEL
≤25dB(A)
What’s In The Box?
Trak Racer TR160 flight cockpit
Trak Racer flight seat
Trak Racer single monitor stand
Trak Racer PC shelf
MOZA AY210 force feedback yoke base
MOZA MFY yoke
MOZA AB6 force feedback flight base
MOZA MHG flightstick
MOZA MTQ throttle quadrant
Honeycomb Charlie rudder pedals
AOC 49 inch ultra wide monitor
Sigma Integrale DK2+ Motion System
Gamer Gear Direct floor mat
Edifier G2000 gaming speakers + mounts
Reviews
Warranty
See below for the specific warranties related to each product included in this ready-to-fly bundle.
Trak Racer: 5 year limited warranty
Sigma Integrale: 3-year electrical and 1-year mechanical system warranty
Honeycomb: 2 year limited warranty
AOC monitors: 3 year limited warranty
MOZA Racing: 2 year limited warranty
Every product sold by Gamer Gear Direct is 100% genuine and sourced directly from official distributors. You get full warranty coverage and local support from our team of simulation experts.
Shipping Notes
- Free Standard Shipping on $100+ Orders to the USA.
- Except Preorder products are shipped in 48 hours.
- Delivery to the USA:
- Standard Shipping : 3-10 business days
- If time is of the essence, please consider selecting expedited delivery for faster service.
Exchange/Return Notes
- We offer a 30-day return/exchange service after receiving.
- Final sale items are not eligible for returns or exchanges.
- To process your return/exchange, please contact us at [email protected]
- Please click here for more details>>> Return & Exchange Policy
