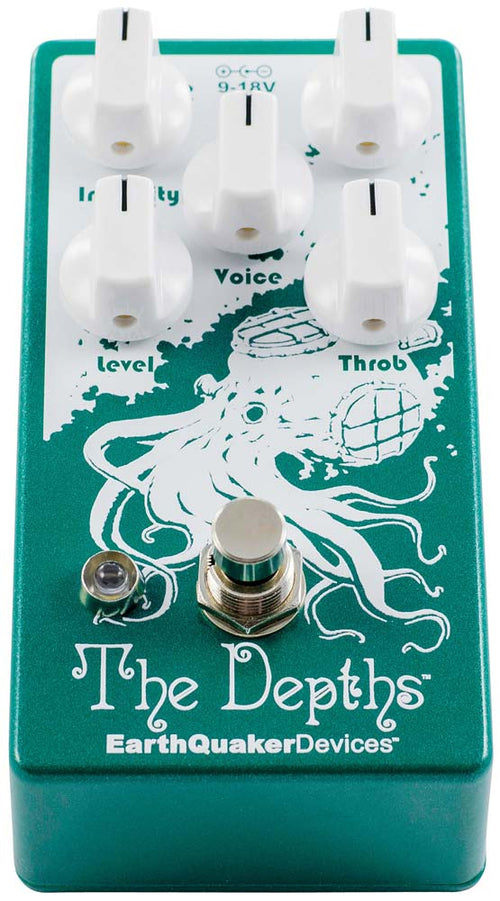

EarthQuaker Devices The Depths Optical Vibe Machine V2

Buy Online via Reverb->

The Depths is our take on the classic optical vibe circuit. Now you can swab the decks with the same lush, pulsating, three-dimensional swirling sound you know and love, with some modern accouterments for all you land-lubbers out there.

The Depths is optimized for use with all kinds of instruments, pickups, and to play well with dirt, so nobody’s left waiting on shore. If it’s got a ¼” output, plug it in and get deep!

Dimensions

4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs

Current Draw

21 mA

Input Impedance

1 MΩ

Output Impedance

<1 kΩ

Flexi-Switch® Technology

This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

• For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.

• For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.

Since the switching is relay based, it requires power to pass signal.

Power

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
