Description

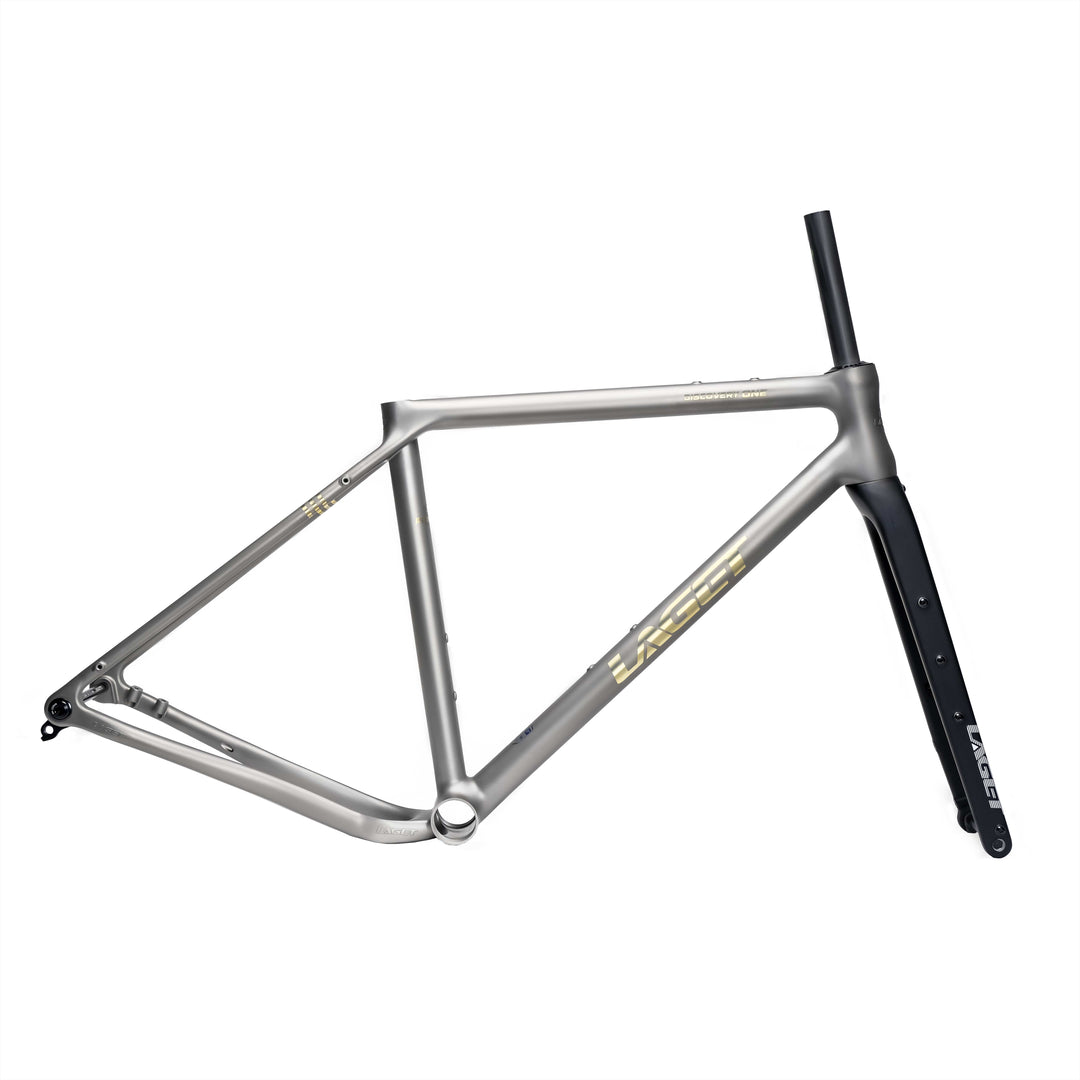

titanium gravel bike frameset Laget Discovery One Titanium Gravel Frameset | 3D-Printed Titanium | 1450g (S) | 700x50cLAGET is a German registered titanium bike brand by TSB, with nearly a decade of recognition among cycling enthusiasts worldwide. All frames are designed by German designers and crafted in Xi'an, China. The name is inspired by "Last Target" from The Matrix, the idea that after riding every material under the sun, riders arrive at the ultimate target: titanium. Titanium alloy frames offer unique advantages: high strength, light weight, fatigue and
LAGET is a German-registered titanium bike brand by TSB, with nearly a decade of recognition among cycling enthusiasts worldwide.
All frames are designed by German designers and crafted in Xi'an, China.
The name is inspired by "Last Target" from The Matrix, the idea that after riding every material under the sun, riders arrive at the ultimate target: titanium.
Titanium alloy frames offer unique advantages: high strength, light weight, fatigue and corrosion resistance, like an old friend who stays with you all the time.
TSB made history as the world's first company to bring titanium 3D printing to civilian bicycle frames, debuting the technology at both Taipei Cycle Show and Eurobike in 2023.
1. Frame
Laget's flagship titanium gravel frame is fully 3D-Printed for a lightweight and strong design, suited for long-distance cycling.
2. Head Tube
One-piece streamlined head tube moulding for a clean appearance and smooth operation.
3. Seat Tube
Precise optimisation of the seat tube geometry ensures riding efficiency and lasting comfort.
4. Dropouts
Equipped with Universal Derailleur Hanger (UDH) system, which allows for flexible and easy-to-source derailleur hangers.
5. Bottom Bracket
3D-printed T47 bottom bracket structure allows for a stable and efficient transfer of power. T47 is also less prone to having abnormal squeaks/noise.
6. Chainstay
High-strength titanium combined with printed structure brings superior compliance, comfort and durability.
Sample Bike Build
Frameset Specifications
Material: Fully 3D-Printed Titanium
Sizes: S, M, L
Weight: 1,450g (Size S)
Surface: Sandblasted Surface - Anodized Logo
Gear Compatibility: Electronic Shifting
Maximum Tyre Capacity: 700x50c
Headset: 52/52mm Internal Embedded Bearings
Front Fork Material: Carbon Fibre
Seatpost Diameter: 31.6mm
Bottom Bracket: T47x85.5mm
Thru Axle: 100x12mm (Front)/142x12mm (Rear)
Thru-Axle Spec: Front: 128mm P1.5 | Rear: 172mm P1.0
Dropout: Universal Derailleur Hanger
What's Included
- Bicycle Frame
- Carbon Fork
- FSA 52mm headset bearing with 2.5cm black spacer
- Front and Rear thru-axles (Aluminium Alloy)
- Universal Rear Derailleur Hanger (Aluminium Alloy)
Shipping
✔ Complimentary standard worldwide shipping
✔ Framesets are shipped separately from other items.
✔ Optional express upgrade available at checkout
Geometry
Size Selection based on Rider Height
| Height (CM) | 155-170 | 168-178 | 175-185 |
| Frame Size | S | M | L |
Please note the size recommendations above are for reference only and apply to most common situations, but not every person's unique morphology.
| Dimension | S | M | L |
| A: Seat Tube Length | 460 | 490 | 520 |
| B: Seat Tube Angle | 74° | 73.5° | 73° |
| C: Head Tube Length | 125 | 140 | 155 |
| D: Head Tube Angle | 70.5° | 71° | 71° |
| E: Effective Top Tube Length | 520 | 540 | 560 |
| F: BB Drop | 72 | 72 | 72 |
| G: Chainstay Length | 430 | 430 | 430 |
| H: Front Fork Offset | 50 | 50 | 50 |
| I: Front Fork Length | 395 | 395 | 395 |
| J: Wheelbase | 1008.3 | 1019.1 | 1034.3 |
| K: Stack Height | 546.4 | 562.5 | 576.7 |
| L: Reach | 363.3 | 374.1 | 383.7 |
| Standover Height | 778 | 800 | 820 |
| Fork Trail | 70.5 | 67.5 | 67.5 |
Dimensions in mm unless otherwise stated.
Geometry Comparison: Size M (Gravel Category)
| Measurement | Laget Discovery One Pro (M) | Specialized Diverge (54cm) | Giant Revolt Advanced (M) | Trek Checkpoint SL Gen 3 (M) |
|---|---|---|---|---|
| Stack | 562.5 mm | 592 mm | 586 mm | 579 mm |
| Reach | 374.1 mm | 387 mm | 387 mm | 391 mm |
| Stack / Reach Ratio | 1.504 | 1.530 | 1.514 | 1.480 |
| Head Tube Angle | 71° | 71° | 71.5° | 71.6° |
| Seat Tube Angle | 73.5° | 74° | 73.5° | 73.3° |
| Head Tube Length | 140 mm | 116 mm | 150 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 425|435 mm | 430 mm |
| BB Drop | 72 mm | 85 mm | 80|81 mm | 76 mm |
| Wheelbase | 1019.1 mm | 1041 mm | 1026|1036 mm | 1034 mm |
All size M / 54cm equivalents. Giant Revolt chainstay length is adjustable via flip-chip dropout. Competitor figures sourced from published geometry charts.
Identical in geometry to the Discovery One Pro, the Discovery One sits on the sportier, more road-biased end of the gravel spectrum. Its stack-to-reach ratio is towards the lower end of the rest, while its wheelbase is the shortest of all, for more nimble handling.
It's less of a rough-stuff explorer and more of a fast all-road bike that happens to handle mixed surfaces well, which fits the titanium frameset character nicely.
Links
Explore other frames from Laget, such as the Pioneer One Pro, Pioneer or other Gravel Framesets Here
Warranty
Laget provides a lifetime warranty for the frame and a 3-year warranty for components.
Damage or breakage caused by accidents, collisions, or improper use is not covered under warranty. If repair is required in such cases, the customer will be responsible for repair costs and related shipping fees.
Titanium parts other than the frame are covered by a 3-year warranty.
Carbon fibre parts are covered by a 1-year warranty.
Each Laget titanium frame is engraved with a unique serial number at the bottom bracket area for identification, record keeping, and after-sales service.
Removal of Laget's logo will not void the warranty. However, it is not possible to purchase the frame without Laget's logo at this time.
